AD712JRZ-REEL - Analog Devices

Description: AD712JRZ-REEL Analog Devices, Precision, Op Amp, 4MHz, 8-Pin SOIC

Download AD712JRZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

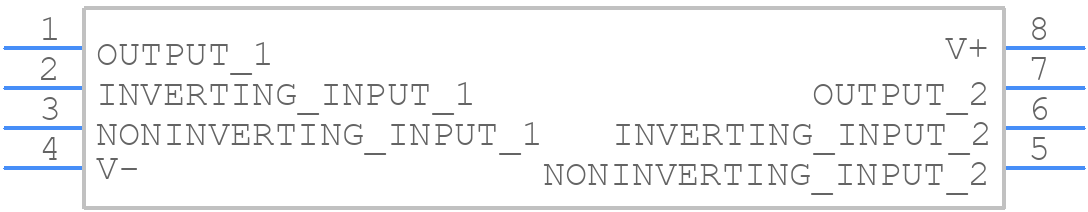

Symbol
AD712JRZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD712JRZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - AD712JRZ-REEL-1
click to zoom
3D Models
AD712JRZ-REEL - Analog Devices - 3D model - Small Outline Packages - AD712JRZ-REEL-1
click to zoom

AD712JRZ-REEL Details

  • Manufacturer Part Number:

    AD712JRZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.000025 µA

  • Bias Current-Max (IIB) @25C:

    0.0001 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    80 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.0006 µA

  • Input Offset Voltage-Max:

    4000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    YES

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    16 V/us

  • Slew Rate-Nom:

    20 V/us

  • Supply Current-Max:

    6.8 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    4000

  • Voltage Gain-Min:

    100000

  • Wideband:

    NO

  • Width:

    3.9 mm

AD712JRZ-REEL Frequently Asked Questions (FAQs)

  • The AD712JRZ-REEL is a sensitive analog device, and its performance can be affected by the PCB layout and placement. It is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and place the device away from high-frequency sources and noise-generating components.
  • The AD712JRZ-REEL requires calibration and configuration to achieve optimal performance. It is recommended to follow the calibration procedure outlined in the datasheet, and to consult the device's programming guide for configuration options. Additionally, Analog Devices provides a software development kit (SDK) that can be used to configure and calibrate the device.
  • The AD712JRZ-REEL has a specified operating temperature range of -40°C to 125°C. To ensure the device operates within this range, it is recommended to provide adequate heat sinking, use thermal interface materials, and avoid exposing the device to extreme temperatures or thermal gradients.
  • To troubleshoot common issues with the AD712JRZ-REEL, it is recommended to consult the device's troubleshooting guide, which provides guidance on identifying and resolving common issues. Additionally, Analog Devices provides application notes and technical support resources that can be used to troubleshoot and resolve issues.
  • The AD712JRZ-REEL is a sensitive device that requires ESD protection during handling and assembly. It is recommended to follow proper ESD handling procedures, use ESD-protective packaging and materials, and ensure that the device is properly grounded during assembly and testing.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD712JRZ-REEL Overview

Use the download button to access the AD712JRZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD712, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
