AD713JN - Analog Devices

Description: Analog Devices AD713JN, Op Amp, 4MHz, 14-Pin PDIP

Download AD713JN Model

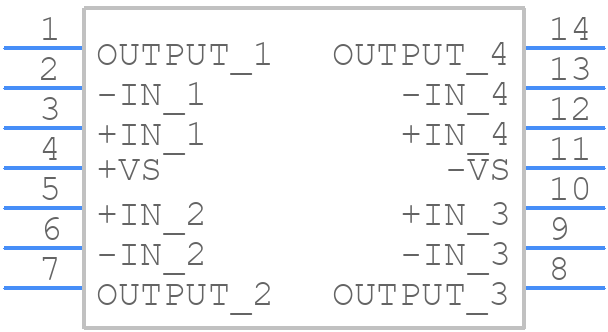

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

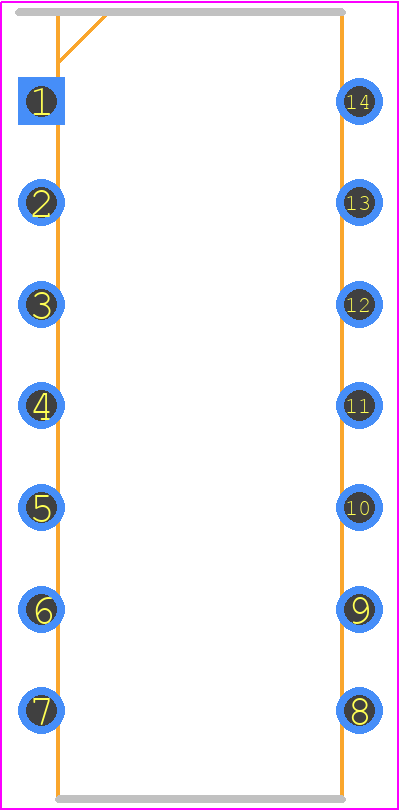

AD713JN - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-14
click to zoom
3D Models
AD713JN - Analog Devices  - 3D model - Dual-In-Line Packages - N-14
click to zoom

AD713JN Details

  • Manufacturer Part Number:

    AD713JN

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-14

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0002 µA

  • Bias Current-Max (IIB) @25C:

    0.0002 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    80 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.0017 µA

  • Input Offset Voltage-Max:

    2000 µV

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e0

  • Length:

    19.305 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Slew Rate-Min:

    16 V/us

  • Slew Rate-Nom:

    20 V/us

  • Supply Current-Max:

    13.5 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    4000

  • Voltage Gain-Min:

    100000

  • Wideband:

    NO

  • Width:

    7.62 mm

AD713JN Frequently Asked Questions (FAQs)

  • The AD713JN is a high-precision, low-noise amplifier, and its performance can be affected by the PCB layout and component placement. It is recommended to follow a star-grounding scheme, keep the input and output traces short and away from noise sources, and use a solid ground plane to minimize noise coupling. Additionally, place the amplifier close to the signal source and use a low-impedance output to minimize noise pickup.
  • The gain resistor values for the AD713JN depend on the desired gain and the input impedance of the amplifier. The datasheet provides a gain equation that can be used to calculate the required resistor values. Additionally, Analog Devices provides a gain calculator tool that can be used to simplify the process. It is also important to consider the tolerance and temperature coefficient of the resistors to ensure accurate gain and stability over temperature.
  • The AD713JN has an absolute maximum input voltage rating of ±15V, but it is recommended to limit the input voltage to ±10V to ensure reliable operation and prevent damage. Exceeding the maximum input voltage can cause permanent damage to the amplifier.
  • The AD713JN is specified to operate over a temperature range of -40°C to +125°C. To ensure operation within this range, it is important to consider the ambient temperature, power dissipation, and thermal resistance of the package. The datasheet provides thermal resistance values for the package, and a thermal analysis can be performed to ensure that the junction temperature remains within the specified range.
  • The AD713JN requires a well-regulated power supply with minimal noise and ripple. A recommended decoupling scheme includes a 10uF ceramic capacitor in parallel with a 1uF ceramic capacitor, placed close to the power pins of the amplifier. Additionally, a 100nF capacitor can be added in parallel to filter out high-frequency noise.
