AD713JNZ - Analog Devices

Description: AD713JNZ, Quad Operational Amplifier 4MHz, 14-Pin PDIP

Download AD713JNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

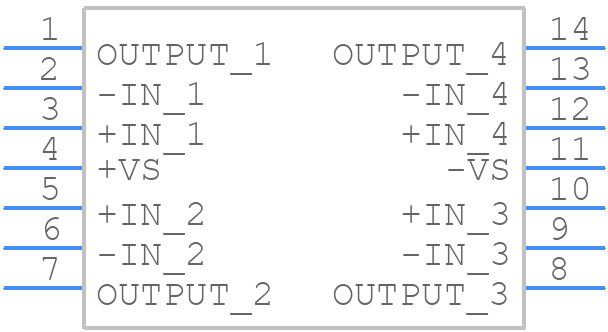

AD713JNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

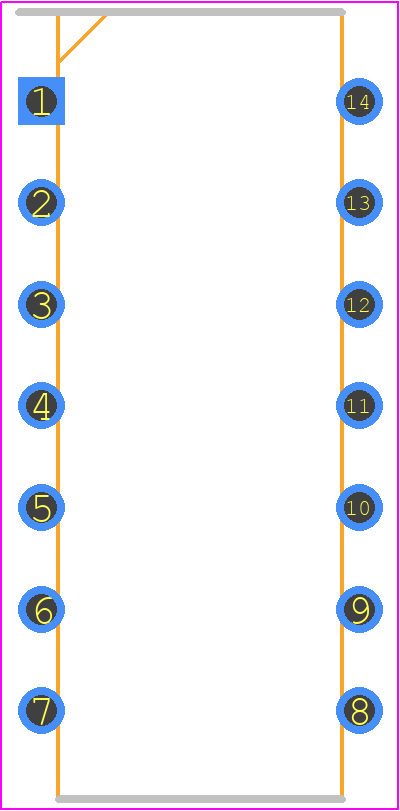

AD713JNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-14
click to zoom
3D Models
AD713JNZ - Analog Devices - 3D model - Dual-In-Line Packages - N-14
click to zoom

AD713JNZ Details

  • Manufacturer Part Number:

    AD713JNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Package Description:

    ROHS COMPLIANT, PLASTIC, MS-001, DIP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    N-14

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0002 µA

  • Bias Current-Max (IIB) @25C:

    0.0002 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    84 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.0017 µA

  • Input Offset Voltage-Max:

    2000 µV

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e3

  • Length:

    19.05 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Slew Rate-Min:

    16 V/us

  • Slew Rate-Nom:

    20 V/us

  • Supply Current-Max:

    13.5 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIFET

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    4000

  • Voltage Gain-Min:

    100000

  • Wideband:

    YES

  • Width:

    7.62 mm

AD713JNZ Frequently Asked Questions (FAQs)

  • A good layout and grounding technique is crucial for the AD713JNZ. It is recommended to use a multi-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it is recommended to use a star-grounding technique, where all grounds are connected to a single point, and to avoid running digital and analog traces parallel to each other.
  • The gain resistor values for the AD713JNZ depend on the desired gain and bandwidth of the amplifier. A good starting point is to use the gain resistor values recommended in the datasheet, and then adjust them based on the specific requirements of your application. It is also important to consider the tolerance of the resistors and their temperature coefficient.
  • The maximum input voltage that the AD713JNZ can handle is ±10V, but this can be limited by the power supply voltage and the output voltage swing. It is recommended to ensure that the input voltage is within the common-mode range of the amplifier to maintain linearity and prevent distortion.
  • To reduce noise and EMI in an AD713JNZ circuit, it is recommended to use a low-noise power supply, to decouple the power supply lines with capacitors, and to use shielding and grounding techniques to minimize electromagnetic radiation. Additionally, it is recommended to use a low-pass filter at the input of the amplifier to filter out high-frequency noise.
  • The maximum power dissipation of the AD713JNZ is 670mW, which is limited by the thermal resistance of the package and the ambient temperature. It is recommended to ensure that the power dissipation is within the specified limit to prevent overheating and damage to the device.
