AD713JRZ-16 - Analog Devices

Description: Analog Devices AD713JRZ-16, Quad Op Amp, 4MHz Rail-Rail, 16-Pin SOIC

Download AD713JRZ-16 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

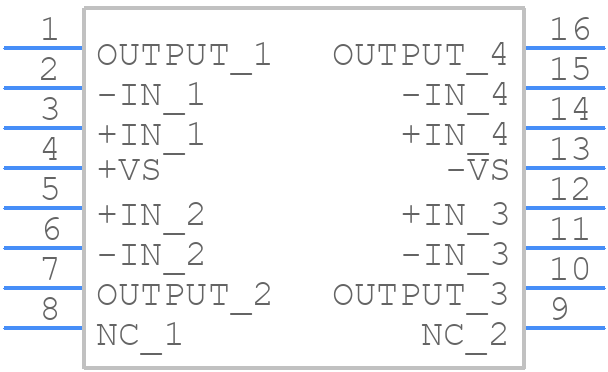

AD713JRZ-16 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD713JRZ-16 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-16 (SOIC)
click to zoom
3D Models
AD713JRZ-16 - Analog Devices - 3D model - Small Outline Packages - RW-16 (SOIC)
click to zoom

AD713JRZ-16 Details

  • Manufacturer Part Number:

    AD713JRZ-16

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-013AA, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0002 µA

  • Bias Current-Max (IIB) @25C:

    0.0002 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    84 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.0017 µA

  • Input Offset Voltage-Max:

    2000 µV

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Slew Rate-Min:

    16 V/us

  • Slew Rate-Nom:

    20 V/us

  • Supply Current-Max:

    13.5 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIFET

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    4000

  • Voltage Gain-Min:

    100000

  • Wideband:

    YES

  • Width:

    7.5 mm

AD713JRZ-16 Frequently Asked Questions (FAQs)

  • The AD713JRZ-16 is a high-precision, low-noise amplifier, and its performance can be affected by the PCB layout and component placement. It is recommended to follow a star-grounding scheme, keep the input and output traces short and symmetrical, and place the amplifier close to the analog-to-digital converter (ADC) or other sensitive components.
  • The AD713JRZ-16 is specified to operate from -40°C to 125°C. To ensure operation within this range, ensure good thermal management, such as providing adequate heat sinking, using thermal interface materials, and avoiding high-power components nearby that can generate excessive heat.
  • To prevent damage or latch-up, it is recommended to power up the AD713JRZ-16 in the following sequence: 1) Power up the analog supply (VCC), 2) Power up the digital supply (VDD), and 3) Apply the input signal. This sequence helps prevent unwanted current flows and ensures proper operation.
  • To filter out EMI and RFI, use a combination of shielding, filtering, and grounding techniques. Use a metal shield around the amplifier, add EMI filters (e.g., ferrite beads or chokes) to the input and output lines, and ensure a low-impedance ground plane. Additionally, use a common-mode filter or a differential-mode filter to reject common-mode noise.
  • The AD713JRZ-16 is designed to drive a 1 kΩ to 10 kΩ load impedance. For optimal performance, ensure the input impedance is matched to the source impedance, and the output impedance is matched to the load impedance. Impedance mismatches can lead to signal reflections, distortion, and reduced performance.
