AD713TQ - Analog Devices

Description: Operational Amplifier, Quad AMP, Bipolar/JFET, 14 Pin, Ceramic, DIP

Download AD713TQ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

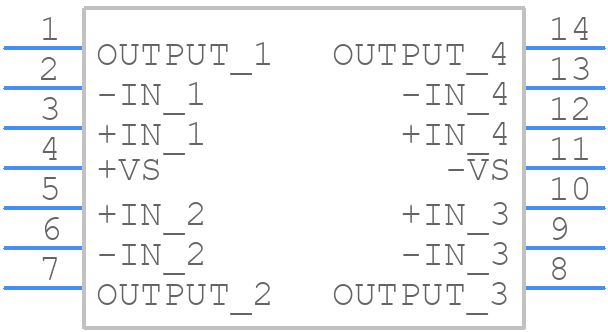

AD713TQ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

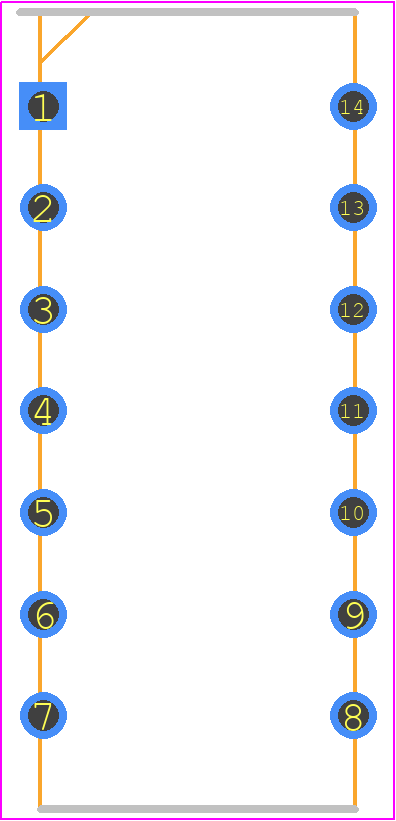

AD713TQ - Analog Devices PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - Q-14_2022
