Part Image

AD7224KPZ - Analog Devices

Description: AD7224KPZ, 8 bit-Bit DAC 143ksps, Parallel, 20-Pin PLCC

Download AD7224KPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

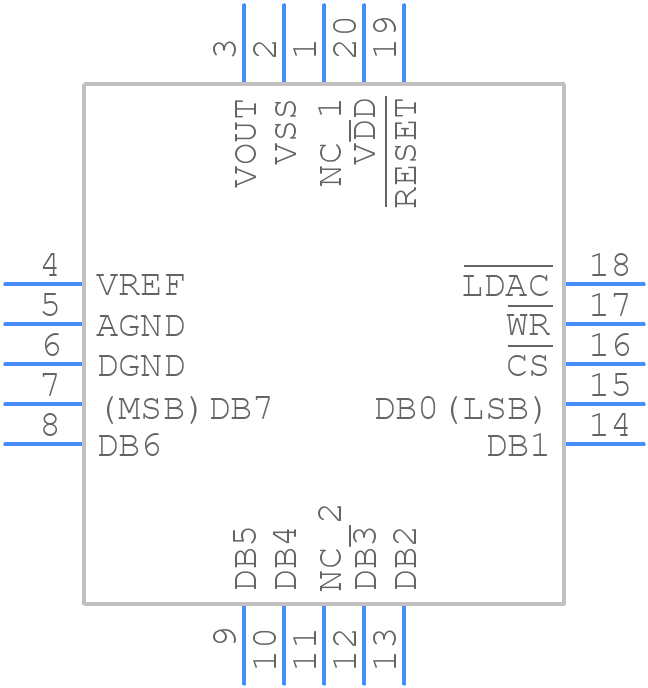

Symbol
AD7224KPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7224KPZ - Analog Devices PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - P-20A
click to zoom
3D Models
AD7224KPZ - Analog Devices - 3D model - Plastic Leaded Chip Carrier - P-20A
click to zoom

AD7224KPZ Details

  • Manufacturer Part Number:

    AD7224KPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QLCC

  • Package Description:

    PLASTIC, LCC-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    P-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, 8 BITS

  • JESD-30 Code:

    S-PQCC-J20

  • JESD-609 Code:

    e3

  • Length:

    8.93 mm

  • Linearity Error-Max (EL):

    0.391%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Equivalence Code:

    LDCC20,.4SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.39 mm

  • Settling Time-Max:

    20 µs

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Width:

    8.93 mm

AD7224KPZ Frequently Asked Questions (FAQs)

  • The AD7224KPZ is a high-frequency device, and proper layout and placement are crucial for optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, and using a solid ground plane to reduce noise and radiation.
  • To optimize the performance of the AD7224KPZ, it is recommended to carefully consider the input and output impedance matching, as well as the power supply decoupling and filtering. Additionally, the device's operating conditions, such as temperature and supply voltage, should be within the recommended specifications.
  • The AD7224KPZ is specified to operate over a temperature range of -40°C to +125°C, but it is recommended to derate the device's performance at higher temperatures to ensure reliability and longevity.
  • Common issues with the AD7224KPZ can often be attributed to improper layout, inadequate power supply decoupling, or incorrect input/output impedance matching. To troubleshoot, it is recommended to verify the device's operating conditions, check for noise and radiation, and consult the datasheet and application notes for guidance.
  • Yes, the AD7224KPZ can be used in a non-inverting configuration, but it is recommended to consult the datasheet and application notes for specific guidance on how to implement this configuration, as it may require additional components and careful consideration of the input/output impedance matching.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7224KPZ Overview

Use the download button to access the AD7224KPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD722, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
