AD7224KRZ-1 - Analog Devices

Description: ANALOG DEVICES - AD7224KRZ-1 - DAC, 8BIT, 143KSPS, SOIC-20

Download AD7224KRZ-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

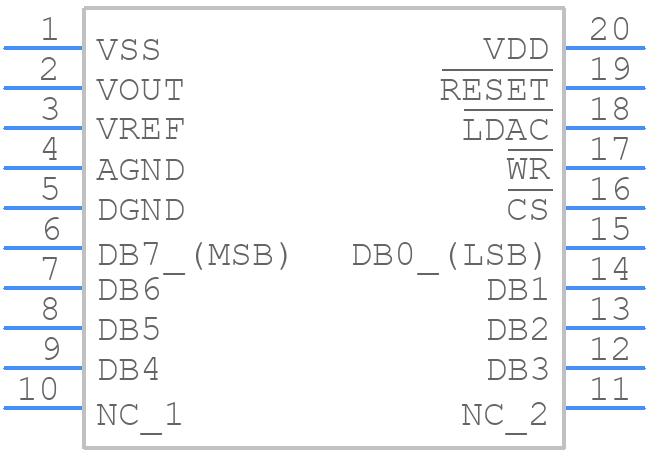

AD7224KRZ-1 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7224KRZ-1 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-20 (SOIC)
click to zoom
3D Models
AD7224KRZ-1 - Analog Devices - 3D model - Small Outline Packages - R-20 (SOIC)
click to zoom

AD7224KRZ-1 Details

  • Manufacturer Part Number:

    AD7224KRZ-1

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RW-20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, 8 BITS

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Linearity Error-Max (EL):

    0.391%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Settling Time-Max:

    20 µs

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AD7224KRZ-1 Frequently Asked Questions (FAQs)

  • The AD7224KRZ-1 is a sensitive analog device, and proper layout and placement are crucial. It's recommended to keep the device away from high-frequency sources, use a solid ground plane, and minimize trace lengths and widths to reduce noise and parasitic inductance.
  • The AD7224KRZ-1 requires a specific bias voltage and configuration to operate correctly. Refer to the datasheet for recommended biasing and configuration options, and consult with Analog Devices' application notes and support resources for specific guidance tailored to your application.
  • The AD7224KRZ-1 has a maximum junction temperature of 150°C. Ensure good thermal conduction by using a heat sink or thermal pad, and avoid operating the device in high-temperature environments. Monitor the device's temperature and adjust the operating conditions accordingly to prevent overheating.
  • Common issues with the AD7224KRZ-1 can often be attributed to improper biasing, layout, or component selection. Consult the datasheet and application notes for troubleshooting guides, and consider using simulation tools or seeking support from Analog Devices' technical support team.
  • The AD7224KRZ-1 is a sensitive device and requires proper ESD protection during handling and assembly. Use anti-static wrist straps, mats, and packaging materials, and follow proper handling procedures to prevent damage from electrostatic discharge.
