AD7224KRZ-18REEL - Analog Devices

Description: Digital to Analog Converters - DAC 8-BIT CMOS V-OUT DAC

Download AD7224KRZ-18REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

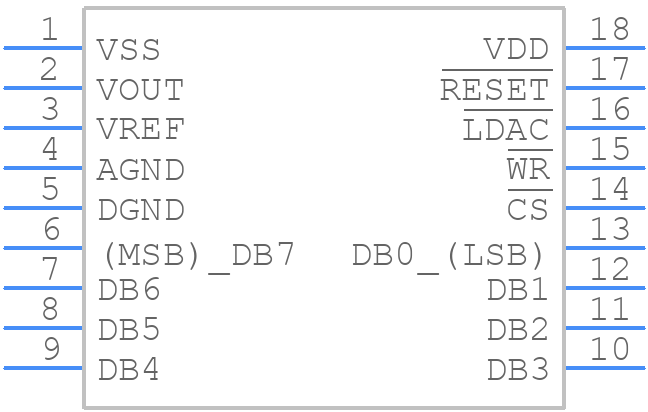

AD7224KRZ-18REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7224KRZ-18REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-18
click to zoom
3D Models
AD7224KRZ-18REEL - Analog Devices - 3D model - Small Outline Packages - R-18
click to zoom

AD7224KRZ-18REEL Details

  • Manufacturer Part Number:

    AD7224KRZ-18REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-18

  • Pin Count:

    18

  • Manufacturer Package Code:

    RW-18

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, 8 BITS
