AD7225BQ - Analog Devices

Description: Analog Devices AD7225BQ, 4-channel 8 bit Parallel DAC, 200ksps, 24-Pin CERDIP

Download AD7225BQ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

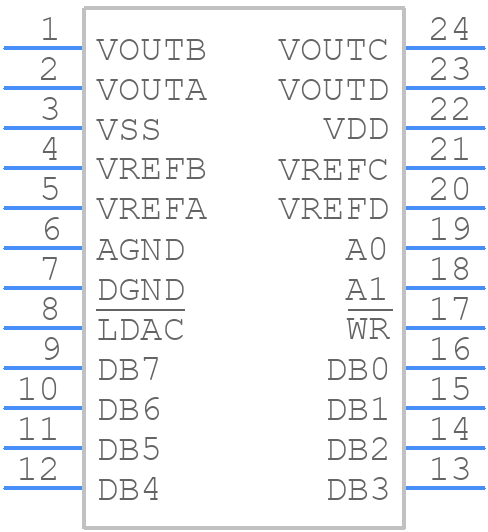

Symbol
AD7225BQ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7225BQ - Analog Devices PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - Q-24-1
click to zoom

AD7225BQ Details

  • Manufacturer Part Number:

    AD7225BQ

  • Source Url Status Check Date:

    2013-05-01 14:56:16.834

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Package Description:

    CERAMIC, DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    Q-24-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Analog Output Voltage-Max:

    5 V

  • Analog Output Voltage-Min:

    -5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, OFFSET BINARY

  • Input Format:

    PARALLEL, 8 BITS

  • JESD-30 Code:

    R-CDIP-T24

  • JESD-609 Code:

    e0

  • Linearity Error-Max (EL):

    0.1953%

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Screening Level:

    MIL-STD-883

  • Seated Height-Max:

    5.08 mm

  • Settling Time-Max:

    5 µs

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7225BQ Frequently Asked Questions (FAQs)

  • The AD7225BQ is a high-frequency device, and proper layout and placement are crucial for optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, and using a solid ground plane to reduce noise and radiation.
  • To optimize the performance of the AD7225BQ, it is recommended to carefully select the input and output impedance, choose the correct gain setting, and optimize the power supply decoupling. Additionally, it is important to minimize noise and interference in the system, and to use proper shielding and grounding techniques.
  • The AD7225BQ is specified to operate over a temperature range of -40°C to +125°C. However, it is recommended to derate the device's performance at extreme temperatures, and to ensure that the device is properly cooled in high-temperature applications.
  • To troubleshoot common issues with the AD7225BQ, it is recommended to check the power supply voltage and decoupling, ensure that the input and output impedance are properly matched, and verify that the device is properly grounded and shielded. Additionally, it may be helpful to use simulation tools or Spice models to analyze the circuit and identify potential issues.
  • Yes, the AD7225BQ can be used in a non-inverting configuration. However, it is important to note that the device's input common-mode range is limited, and the input voltage must be within the specified range to ensure proper operation. Additionally, the gain setting and output impedance may need to be adjusted to accommodate the non-inverting configuration.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7225BQ Overview

Use the download button to access the AD7225BQ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AD722, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
