AD7225CRSZ - Analog Devices

Description: Four 8-bit DACs with output amplifiers Separate reference input for each DAC Microprocessor compatible with double-buffered inputs Simultaneous update of all 4 outputs Operates with single or dual supplies Extended temperature range operation No user trims required Skinny 24-lead PDIP, CERDIP, SOIC, and SSOP packages 28-lead PLCC package

Download AD7225CRSZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

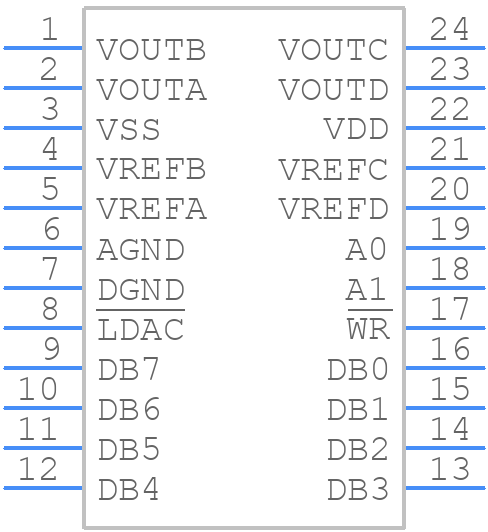

AD7225CRSZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7225CRSZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-24 (SSOP)
click to zoom
3D Models
AD7225CRSZ - Analog Devices - 3D model - Small Outline Packages - RS-24 (SSOP)
click to zoom

AD7225CRSZ Details

  • Manufacturer Part Number:

    AD7225CRSZ

  • Source Url Status Check Date:

    2013-05-01 14:56:16.838

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, MO-150AG, SSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RS-24

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, OFFSET BINARY

  • Input Format:

    PARALLEL, 8 BITS

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    8.2 mm

  • Linearity Error-Max (EL):

    0.1953%

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Screening Level:

    MIL-STD-883

  • Seated Height-Max:

    2 mm

  • Settling Time-Max:

    4 µs

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    5.3 mm

AD7225CRSZ Frequently Asked Questions (FAQs)

  • It's essential to follow a good layout and placement strategy to minimize noise and ensure optimal performance. Place the AD7225CRSZ close to the analog signal sources, use a solid ground plane, and keep the analog and digital sections separate. Also, ensure that the input and output traces are short and direct, and avoid running digital traces near the analog signals.
  • The power-up sequence is critical for the AD7225CRSZ. Ensure that the analog power supply (VCC) is powered up before the digital power supply (VDD). Also, the VCC should be powered up before the input signals are applied. A proper power-up sequence helps prevent latch-up and ensures reliable operation.
  • The recommended input impedance for the AD7225CRSZ is 1 kΩ or less. This ensures that the input signal is not attenuated and that the device can accurately convert the input signal. Higher input impedances can lead to signal degradation and reduced accuracy.
  • Calibration is not required for the AD7225CRSZ, as it is a self-calibrating device. However, it's essential to ensure that the device is operated within its specified temperature range and that the input signals are within the recommended range. Also, follow the recommended layout and placement guidelines to minimize noise and ensure optimal performance.
  • The maximum clock frequency for the AD7225CRSZ is 10 MHz. Exceeding this frequency can lead to reduced accuracy, increased noise, and potential device damage. Ensure that the clock frequency is within the recommended range to ensure reliable operation.
