- Part Number AD7225KNZ
- Manufacturer Analog Devices
- Pin Count 24
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - N-24-1
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD7225KNZ Details
-
Manufacturer Part Number:
AD7225KNZ
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Part Package Code:
DIP
-
Package Description:
ROHS COMPLIANT, PLASTIC, MS-001, DIP-24
-
Pin Count:
24
-
Manufacturer Package Code:
N-24-1
-
Country Of Origin:
Philippines
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
AD7225KNZ Frequently Asked Questions (FAQs)
-
The recommended layout and placement for the AD7225KNZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources to minimize noise. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
-
To optimize the performance of the AD7225KNZ in a noisy environment, use shielding, filtering, and decoupling to minimize electromagnetic interference (EMI) and radio-frequency interference (RFI). Additionally, use a low-pass filter at the input to remove high-frequency noise, and consider using a ferrite bead or a common-mode choke to filter out high-frequency noise.
-
The maximum operating temperature range for the AD7225KNZ is -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and it's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance.
-
Yes, the AD7225KNZ can be used with a single power supply. However, it's recommended to use separate power supplies for the analog and digital sections to minimize noise and ensure optimal performance. If a single power supply is used, ensure that it's well-regulated and decoupled to prevent noise from affecting the device's performance.
-
To troubleshoot common issues with the AD7225KNZ, start by checking the power supply voltage, analog input voltage, and digital output voltage. Verify that the device is properly configured and that the input signals are within the specified range. Check for noise and interference, and ensure that the device is properly decoupled and filtered. If issues persist, consult the datasheet and application notes for further guidance.
Trust Checks
Community Provided
System Verified
Community Approved
AD7225KNZ Overview

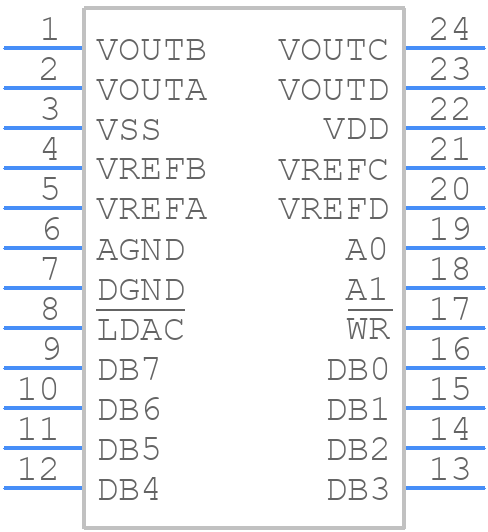

Use the download button to access the AD7225KNZ schematic symbol, PCB footprint, and 3D model.
