AD7226KNZ - Analog Devices

Description: AD7226KNZ, 8 bit-Bit DAC Quad 143ksps, Parallel, 20-Pin PDIP

Download AD7226KNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

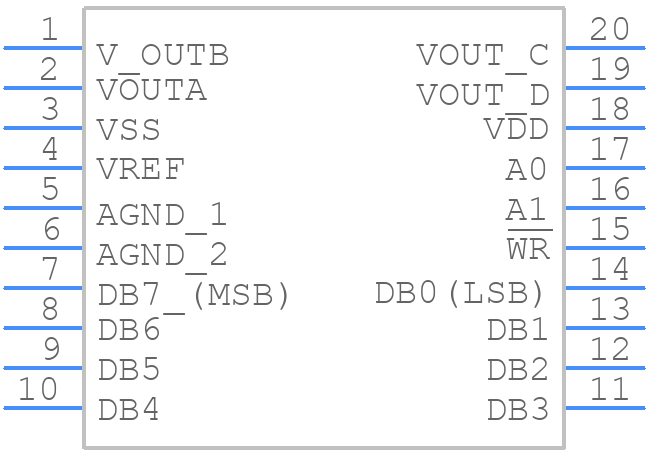

Symbol
AD7226KNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7226KNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - (N-20)
click to zoom
3D Models
AD7226KNZ - Analog Devices - 3D model - Dual-In-Line Packages - (N-20)
click to zoom

AD7226KNZ Details

  • Manufacturer Part Number:

    AD7226KNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Package Description:

    ROHS COMPLIANT, PLASTIC, MS-001, DIP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    N-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Analog Output Voltage-Max:

    10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, OFFSET BINARY

  • Input Format:

    PARALLEL, 8 BITS

  • JESD-30 Code:

    R-PDIP-T20

  • JESD-609 Code:

    e3

  • Length:

    26.16 mm

  • Linearity Error-Max (EL):

    0.1953%

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Settling Time-Max:

    20 µs

  • Settling Time-Nom (tstl):

    3 µs

  • Supply Current-Max:

    13 mA

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7226KNZ Frequently Asked Questions (FAQs)

  • It is recommended to place the AD7226KNZ close to the analog signal sources, use a solid ground plane, and keep the analog and digital grounds separate. Additionally, use short and direct traces for the analog signals, and avoid running digital signals near the analog signals.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, and make sure to use a high-accuracy temperature reference point. Also, consider using a thermocouple or other temperature sensor to verify the accuracy of the AD7226KNZ.
  • The maximum allowed voltage on the VCC pin is 7V. Exceeding this voltage can cause permanent damage to the device, including latch-up or burnout. It is essential to ensure that the power supply voltage does not exceed the recommended maximum rating.
  • The AD7226KNZ has a built-in POR and BOR circuitry. To handle these features, ensure that the power supply voltage is stable and within the recommended range during power-up. Also, consider adding external circuitry to detect and respond to brown-out conditions.
  • The recommended method is to use a serial interface, such as SPI or I2C, to communicate with the AD7226KNZ. Ensure that the microcontroller or digital system is compatible with the AD7226KNZ's communication protocol and that the interface signals are properly buffered and terminated.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7226KNZ Overview

Use the download button to access the AD7226KNZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD722, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
