AD7226KRZ footprint, schematic symbol and 3D model by Analog Devices

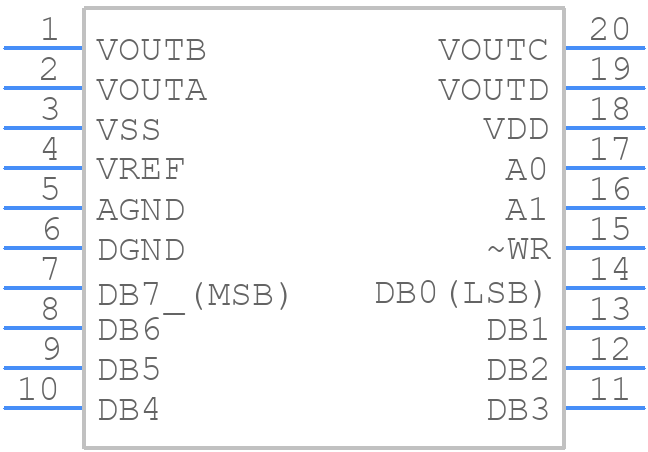

Symbol

click to zoom

PCB Footprints

AD7226KRZ - Analog Devices PCB footprint - Other - Other - SOIC127P1032X265-20N

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AD7226KRZ
Part Number AD7226KRZ
Manufacturer Analog Devices
Pin Count 20
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - SOIC127P1032X265-20N
Released Date Jan 11, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

AD7226KRZ Details

Manufacturer Part Number:
AD7226KRZ
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Not Recommended
Part Package Code:
SOIC
Package Description:
ROHS COMPLIANT, MS-013AC, SOIC-20
Pin Count:
20
Manufacturer Package Code:
RW-20
Country Of Origin:
Philippines
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
3
Analog Output Voltage-Max:
10 V
Converter Type:
D/A CONVERTER
Input Bit Code:
BINARY, OFFSET BINARY
Input Format:
PARALLEL, 8 BITS
JESD-30 Code:
R-PDSO-G20
JESD-609 Code:
e3
Length:
12.8 mm
Linearity Error-Max (EL):
0.1953%
Moisture Sensitivity Level:
3
Negative Supply Voltage-Nom:
-5 V
Number of Bits:
8
Number of Functions:
1
Number of Terminals:
20
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP20,.4
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
2.65 mm
Settling Time-Max:
20 µs
Settling Time-Nom (tstl):
3 µs
Supply Current-Max:
13 mA
Supply Voltage-Nom:
15 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
7.5 mm

AD7226KRZ Frequently Asked Questions (FAQs)

The AD7226KRZ requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
To optimize the AD7226KRZ's performance, it is essential to understand the specific requirements of your application. This includes selecting the correct gain and bandwidth settings, optimizing the input impedance, and ensuring proper power supply decoupling. Additionally, it is recommended to consult the device's evaluation board documentation and application notes for specific guidance.
The AD7226KRZ has a maximum junction temperature of 150°C. To ensure reliable operation, it is essential to provide adequate heat sinking and thermal management. This includes using a heat sink, ensuring good airflow, and avoiding high ambient temperatures.
Common issues with the AD7226KRZ include noise, oscillations, and incorrect output voltages. To troubleshoot these issues, it is recommended to check the power supply, input signals, and output loads. Additionally, consult the device's datasheet and application notes for specific troubleshooting guidance.
The AD7226KRZ is a high-frequency device and requires careful consideration of electromagnetic interference (EMI) and radio-frequency interference (RFI). To minimize EMI and RFI, it is recommended to use shielding, filtering, and proper grounding techniques.
