AD7228ABNZ - Analog Devices

Description: AD7228ABNZ, 8 bit-Bit DAC 8-channel 200ksps, Parallel, 24-Pin PDIP

Download AD7228ABNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

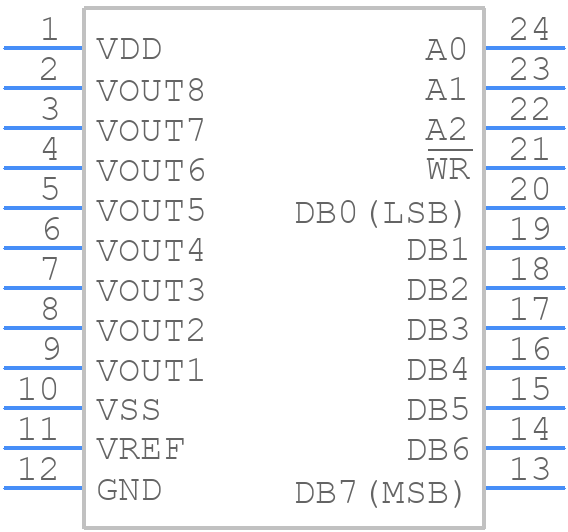

AD7228ABNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7228ABNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-24-1
click to zoom
3D Models
AD7228ABNZ - Analog Devices - 3D model - Dual-In-Line Packages - N-24-1
click to zoom

AD7228ABNZ Details

  • Manufacturer Part Number:

    AD7228ABNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    SKINNY, PLASTIC, DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    N-24-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5 V

  • Analog Output Voltage-Min:

    -5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, 8 BITS

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e3

  • Length:

    30.48 mm

  • Linearity Error-Max (EL):

    0.391%

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    8

  • Number of Functions:

    8

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Settling Time-Max:

    5 µs

  • Supply Current-Max:

    20 mA

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7228ABNZ Frequently Asked Questions (FAQs)

  • It is recommended to place the AD7228ABNZ close to the analog signal sources, use a solid ground plane, and keep the analog and digital grounds separate. Additionally, use short and direct traces for the analog signals, and avoid running digital signals near the analog signals.
  • The AD7228ABNZ has an internal calibration mechanism. To ensure accurate temperature measurements, it is recommended to follow the calibration procedure outlined in the datasheet, which involves applying a known temperature to the device and adjusting the offset and gain registers accordingly.
  • The maximum cable length for the AD7228ABNZ's remote temperature sensing capability depends on the specific application and the type of cable used. As a general guideline, Analog Devices recommends keeping the cable length as short as possible (less than 10 feet) to minimize signal attenuation and noise pickup.
  • While the AD7228ABNZ is rated for operation up to 150°C, it can be used in high-temperature applications above 150°C with some limitations. However, the device's accuracy and reliability may be compromised at extremely high temperatures. It is recommended to consult with Analog Devices' application engineers for specific guidance on using the AD7228ABNZ in high-temperature applications.
  • The AD7228ABNZ can be interfaced with a microcontroller or FPGA using a standard SPI or I2C interface. The device's digital output can be connected to the microcontroller's or FPGA's digital input pins, and the communication protocol can be implemented using the microcontroller's or FPGA's built-in SPI or I2C peripherals.
