AD7228ABRZ - Analog Devices

Description: AD7228ABRZ, 8-Bit 8 Bit DAC 8-channel 200ksps, Parallel, 24-Pin SOIC W

Download AD7228ABRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

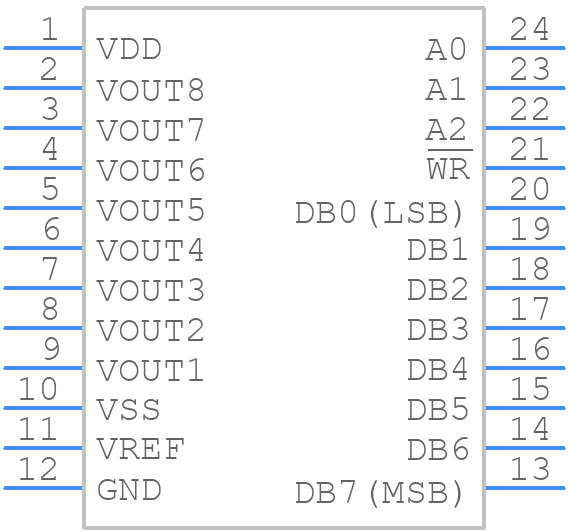

AD7228ABRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7228ABRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-24
click to zoom
3D Models
AD7228ABRZ - Analog Devices - 3D model - Small Outline Packages - R-24
click to zoom

AD7228ABRZ Details

  • Manufacturer Part Number:

    AD7228ABRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RW-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5 V

  • Analog Output Voltage-Min:

    -5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, 8 BITS

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Linearity Error-Max (EL):

    0.391%

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    8

  • Number of Functions:

    8

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Settling Time-Max:

    5 µs

  • Supply Current-Max:

    20 mA

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AD7228ABRZ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD7228ABRZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources to minimize noise. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane and to avoid running digital signals under the device.
  • To optimize the performance of the AD7228ABRZ in a noisy environment, use shielding, filtering, and grounding techniques to minimize electromagnetic interference (EMI). Use a low-pass filter on the input signals, and consider using a ferrite bead or a common-mode choke to filter out high-frequency noise. Additionally, ensure that the device is properly decoupled and that the power supply is clean and well-regulated.
  • The AD7228ABRZ is rated for operation over the industrial temperature range of -40°C to +85°C. However, the device's performance may degrade at extreme temperatures, and the user should consult the datasheet for specific temperature-related specifications and limitations.
  • Yes, the AD7228ABRZ can be used in battery-powered devices. The device has a low power consumption of 1.5mA typical, making it suitable for battery-powered applications. However, the user should ensure that the power supply is well-regulated and that the device is properly decoupled to minimize power supply noise.
  • To troubleshoot common issues with the AD7228ABRZ, start by checking the power supply and ensuring that it is clean and well-regulated. Check for proper grounding and decoupling, and verify that the input signals are within the specified range. Use an oscilloscope to check for noise and distortion on the output signals, and consult the datasheet and application notes for specific troubleshooting guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7228ABRZ Overview

Use the download button to access the AD7228ABRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD722, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
