AD7228ACRZ - Analog Devices

Description: AD7228ACRZ, 8 bit-Bit DAC 8-channel 200ksps, Parallel, 24-Pin SOIC W

Download AD7228ACRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

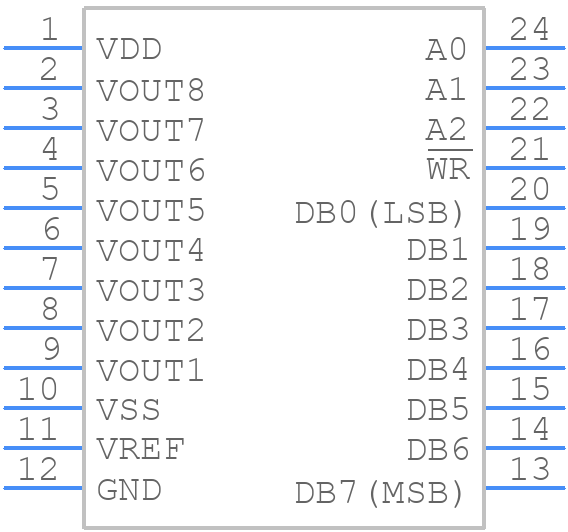

AD7228ACRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7228ACRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-24 (SOIC)
click to zoom
3D Models
AD7228ACRZ - Analog Devices - 3D model - Small Outline Packages - RW-24 (SOIC)
click to zoom

AD7228ACRZ Details

  • Manufacturer Part Number:

    AD7228ACRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RW-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5 V

  • Analog Output Voltage-Min:

    -5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, 8 BITS

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Linearity Error-Max (EL):

    0.195%

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    8

  • Number of Functions:

    8

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Settling Time-Max:

    5 µs

  • Supply Current-Max:

    20 mA

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AD7228ACRZ Frequently Asked Questions (FAQs)

  • The AD7228ACRZ requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital signal traces separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • To optimize the AD7228ACRZ's performance, it is essential to understand the specific requirements of your application. This includes selecting the correct gain and bandwidth settings, optimizing the input impedance, and ensuring proper filtering and shielding. Additionally, it may be necessary to adjust the device's internal voltage reference and biasing to suit your application's specific needs.
  • The AD7228ACRZ is a high-performance device that can generate heat during operation. It is essential to ensure proper thermal management, such as providing adequate airflow, using a heat sink, and avoiding high ambient temperatures. The device's thermal characteristics, such as thermal resistance and junction temperature, should be considered during the design process.
  • Common issues with the AD7228ACRZ include noise, oscillations, and incorrect output voltages. To troubleshoot these issues, it is essential to follow a systematic approach, including checking the power supply, input signals, and output voltages. Additionally, using oscilloscopes and other diagnostic tools can help identify the root cause of the problem.
  • The AD7228ACRZ is a sensitive device that can be affected by electromagnetic interference (EMI) and radio-frequency interference (RFI). To minimize the impact of EMI and RFI, it is essential to use proper shielding, filtering, and grounding techniques. Additionally, the device's layout and placement should be designed to minimize radiation and susceptibility to external interference.
