AD7228LNZ - Analog Devices

Description: AD7228LNZ, 8 bit-Bit DAC 8-channel 200ksps, Parallel, 24-Pin PDIP

Download AD7228LNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

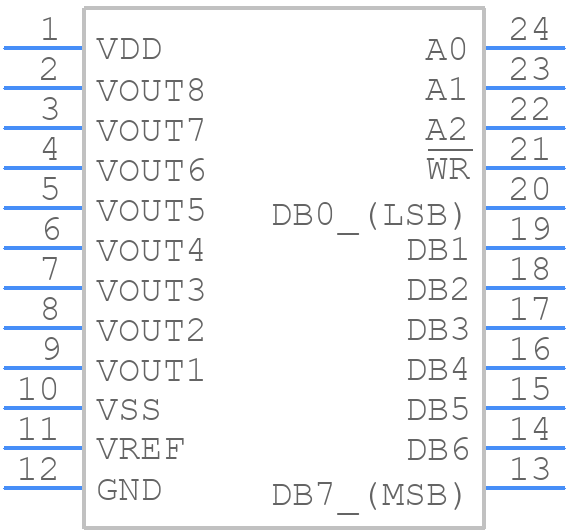

AD7228LNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7228LNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-24-1
click to zoom
3D Models
AD7228LNZ - Analog Devices - 3D model - Dual-In-Line Packages - N-24-1
click to zoom

AD7228LNZ Details

  • Manufacturer Part Number:

    AD7228LNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Package Description:

    DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    N-24-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Analog Output Voltage-Max:

    10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, OFFSET BINARY

  • Input Format:

    PARALLEL, 8 BITS

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e3

  • Length:

    30.48 mm

  • Linearity Error-Max (EL):

    0.195%

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    8

  • Number of Functions:

    8

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Settling Time-Max:

    5 µs

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7228LNZ Frequently Asked Questions (FAQs)

  • The AD7228LNZ requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital signal traces separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • To optimize the AD7228LNZ's performance, it is essential to understand the specific requirements of your application. This includes selecting the correct gain and bandwidth settings, optimizing the input impedance, and ensuring proper power supply decoupling. Additionally, it is recommended to consult the device's evaluation board documentation and application notes for specific guidance.
  • The AD7228LNZ has a maximum junction temperature of 150°C. To ensure reliable operation, it is essential to provide adequate heat sinking and thermal management. This includes using a heat sink or thermal pad, ensuring good airflow, and avoiding high ambient temperatures.
  • Common issues with the AD7228LNZ include noise, oscillations, and incorrect output voltages. To troubleshoot these issues, it is recommended to check the power supply, input signals, and output loads. Additionally, consult the device's datasheet and application notes for specific troubleshooting guidance.
  • The AD7228LNZ is a high-frequency device and requires careful consideration of electromagnetic interference (EMI) and radio-frequency interference (RFI). To minimize EMI and RFI, it is recommended to use shielding, filtering, and grounding techniques, as well as following proper PCB layout and design practices.
