AD7233ANZ - Analog Devices

Description: AD7233ANZ, 12 bit-Bit DAC 300ksps, SPI, 8-Pin PDIP

Download AD7233ANZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

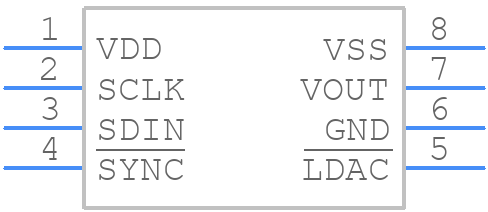

Symbol
AD7233ANZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7233ANZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-8_2
click to zoom
3D Models
AD7233ANZ - Analog Devices - 3D model - Dual-In-Line Packages - N-8_2
click to zoom

AD7233ANZ Details

  • Manufacturer Part Number:

    AD7233ANZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    MINI, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    N-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5 V

  • Analog Output Voltage-Min:

    -5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.88 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Negative Supply Voltage-Nom:

    -12 V

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7233ANZ Frequently Asked Questions (FAQs)

  • The AD7233ANZ requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the power supply, use a solid ground plane, and keep the input and output traces short and separate.
  • To optimize the AD7233ANZ for low noise performance, use a low-noise power supply, decouple the power pins with capacitors, and minimize the distance between the device and the power supply. Additionally, use a low-noise reference voltage and ensure that the input and output traces are well-separated.
  • The AD7233ANZ is rated for operation from -40°C to +125°C, but the device's performance may degrade at extreme temperatures. It is recommended to operate the device within the specified temperature range for optimal performance.
  • The AD7233ANZ is a commercial-grade device and may not meet the requirements for high-reliability or aerospace applications. For such applications, it is recommended to use a device that is specifically designed and qualified for high-reliability or aerospace use.
  • To troubleshoot issues with the AD7233ANZ, start by verifying the power supply voltage, checking for proper decoupling, and ensuring that the input and output signals are within the specified ranges. Use an oscilloscope to check for noise, oscillations, or other anomalies. Consult the datasheet and application notes for additional troubleshooting guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7233ANZ Overview

Use the download button to access the AD7233ANZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD723, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
