AD7233BNZ - Analog Devices

Description: Analog Devices AD7233BNZ, 12 bit Serial DAC, 100ksps, 8-Pin PDIP

Download AD7233BNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

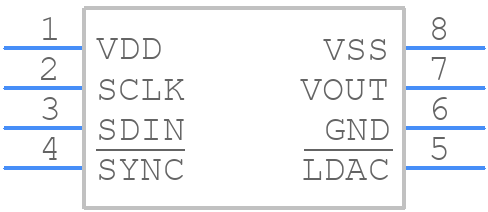

AD7233BNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7233BNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP_8
click to zoom
3D Models
AD7233BNZ - Analog Devices - 3D model - Dual-In-Line Packages - PDIP_8
click to zoom

AD7233BNZ Details

  • Manufacturer Part Number:

    AD7233BNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    MINI, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    N-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5 V

  • Analog Output Voltage-Min:

    -5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.88 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Negative Supply Voltage-Nom:

    -12 V

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7233BNZ Frequently Asked Questions (FAQs)

  • The AD7233BNZ is a high-frequency device, so it's essential to follow good layout and placement practices to minimize noise and ensure optimal performance. Keep the input and output traces short and away from each other, and use a solid ground plane to reduce noise. Place the device close to the power supply and use decoupling capacitors to filter out noise.
  • To optimize the AD7233BNZ for low noise performance, use a low-noise power supply, decouple the power pins with high-quality capacitors, and keep the input and output traces away from each other. Also, use a shielded enclosure to reduce electromagnetic interference (EMI).
  • The AD7233BNZ is rated for operation from -40°C to +125°C, but the device's performance may degrade at extreme temperatures. Ensure proper thermal management and heat sinking to maintain optimal performance.
  • The AD7233BNZ is a commercial-grade device, but Analog Devices Inc offers a radiation-hardened version, the AD7233RH, which is designed for high-reliability and aerospace applications. Consult with Analog Devices Inc for more information on the radiation-hardened version.
  • Common issues with the AD7233BNZ include oscillations, noise, and output voltage errors. To troubleshoot, check the power supply, decoupling, and layout. Verify that the input and output traces are properly terminated and that the device is properly biased. Consult the datasheet and application notes for more information.
