AD7237JRZ - Analog Devices

Description: AD7237JRZ, 12 bit-Bit DAC Dual, Parallel, 24-Pin SOIC W

Download AD7237JRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

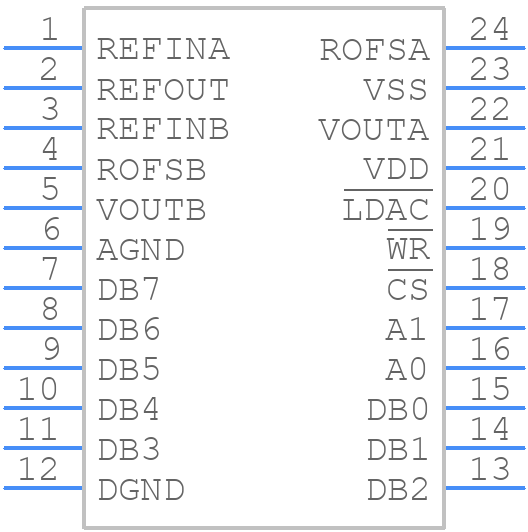

Symbol
AD7237JRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7237JRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-24_1
click to zoom
3D Models
AD7237JRZ - Analog Devices - 3D model - Small Outline Packages - R-24_1
click to zoom

AD7237JRZ Details

  • Manufacturer Part Number:

    AD7237JRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RW-24

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5 V

  • Analog Output Voltage-Min:

    -5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    OFFSET BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Linearity Error-Max (EL):

    0.024%

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Bits:

    12

  • Number of Functions:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Settling Time-Max:

    10 µs

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AD7237JRZ Frequently Asked Questions (FAQs)

  • The AD7237JRZ is a high-frequency device, so it's essential to follow good layout and placement practices to minimize noise and ensure optimal performance. Keep the input and output traces short and away from each other, and use a solid ground plane to reduce noise. Place the device close to the power supply and use decoupling capacitors to filter the power supply noise.
  • To optimize the AD7237JRZ for low noise performance, use a low-noise power supply, decouple the power supply lines with capacitors, and keep the input and output traces away from each other. Also, use a low-noise reference voltage and ensure that the device is operated within its recommended operating conditions.
  • The AD7237JRZ is rated for operation from -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, so it's essential to ensure that the device is operated within its recommended operating conditions.
  • Yes, the AD7237JRZ is a high-reliability device that is suitable for use in high-reliability applications. It is manufactured using a high-reliability process and is screened to ensure that it meets the required standards for high-reliability applications.
  • Common issues with the AD7237JRZ include oscillations, noise, and incorrect output voltage. To troubleshoot these issues, check the device's operating conditions, ensure that the input and output traces are properly routed, and verify that the device is properly decoupled. Also, check the device's output voltage and current to ensure that they are within the recommended specifications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7237JRZ Overview

Use the download button to access the AD7237JRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD723, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
