AD7243ARZ footprint, schematic symbol and 3D model by Analog Devices

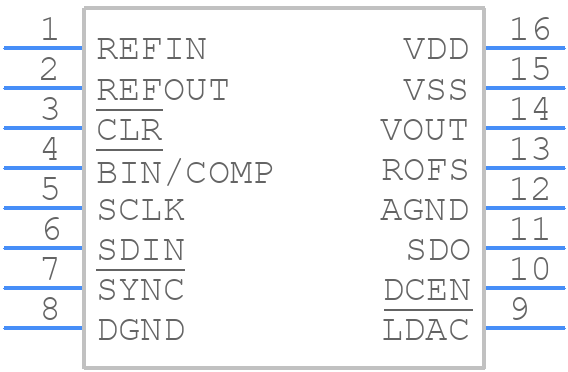

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AD7243ARZ
Part Number AD7243ARZ
Manufacturer Analog Devices
Pin Count 16
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - R-16(SOIC)_3
Released Date Nov 29, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

AD7243ARZ Details

Manufacturer Part Number:
AD7243ARZ
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
SOIC
Package Description:
ROHS COMPLIANT, SOIC-16
Pin Count:
16
Manufacturer Package Code:
RW-16
Country Of Origin:
Taiwan
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
10
Analog Output Voltage-Max:
5 V
Analog Output Voltage-Min:
-5 V
Converter Type:
D/A CONVERTER
Input Bit Code:
BINARY, OFFSET BINARY, 2'S COMPLEMENT BINARY
Input Format:
SERIAL
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e3
Length:
10.3 mm
Linearity Error-Max (EL):
0.0244%
Moisture Sensitivity Level:
1
Number of Bits:
12
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP16,.4
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
2.65 mm
Settling Time-Max:
10 µs
Settling Time-Nom (tstl):
5 µs
Supply Current-Max:
10 mA
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
7.5 mm

AD7243ARZ Frequently Asked Questions (FAQs)

The recommended layout and routing for the AD7243ARZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the AD7243ARZ and the analog-to-digital converter (ADC). Additionally, it is recommended to use a 4-layer PCB with a dedicated analog ground plane and a dedicated digital ground plane.
To optimize the performance of the AD7243ARZ in a noisy environment, it is recommended to use a low-pass filter at the input, use a shielded cable for the analog input, and use a ground plane to reduce electromagnetic interference (EMI). Additionally, it is recommended to use a ferrite bead or a common-mode choke to filter out high-frequency noise.
The maximum clock frequency that can be used with the AD7243ARZ is 20 MHz. However, it is recommended to use a clock frequency of 10 MHz or less to ensure optimal performance and to minimize the effects of jitter.
The AD7243ARZ can be interfaced with a microcontroller using a serial peripheral interface (SPI) or an inter-integrated circuit (I2C) interface. The microcontroller can be used to control the AD7243ARZ, read data from the AD7243ARZ, and provide a clock signal to the AD7243ARZ.
The power consumption of the AD7243ARZ depends on the operating mode and the clock frequency. In normal mode, the power consumption is typically around 15 mW at a clock frequency of 10 MHz. In shutdown mode, the power consumption is typically around 1 μW.

Trust Checks

Community Provided

System Verified

Community Approved

AD7243ARZ Overview

Use the download button to access the AD7243ARZ schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like AD724, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.

Parts related to AD7243ARZ

Showing 0 results

Image	Part Number	Model
	AD7243ARZ-REEL Analog Devices Inc D/A Converter, 1 Func, Serial Input Loading, 5us Settling Time, PDSO16
	AD7243ARZ-REEL Rochester Electronics LLC D/A Converter, 1 Func, Serial Input Loading, 5us Settling Time, PDSO16
	AD7243ARZ Rochester Electronics LLC D/A Converter, 1 Func, Serial Input Loading, 5us Settling Time, PDSO16
	AD7243AR-REEL Analog Devices Inc D/A Converter, 1 Func, Serial Input Loading, 5us Settling Time, PDSO16
	AD7243AR Analog Devices Inc D/A Converter, 1 Func, Serial Input Loading, 5us Settling Time, PDSO16
