AD7243BNZ - Analog Devices

Description: AD7243BNZ, 12 bit-Bit DAC 300ksps, SPI, 16-Pin PDIP

Download AD7243BNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

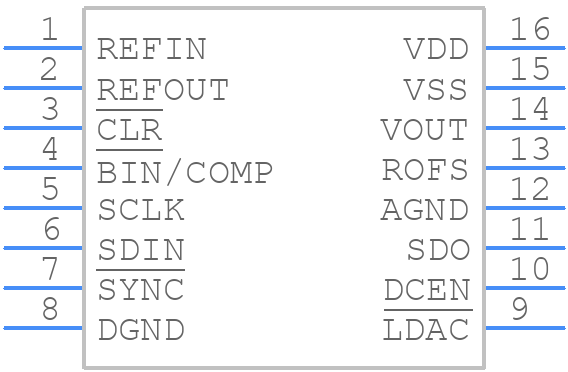

Symbol
AD7243BNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7243BNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-16(inch)
click to zoom
3D Models
AD7243BNZ - Analog Devices - 3D model - Dual-In-Line Packages - N-16(inch)
click to zoom

AD7243BNZ Details

  • Manufacturer Part Number:

    AD7243BNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    N-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5 V

  • Analog Output Voltage-Min:

    -5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, OFFSET BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Linearity Error-Max (EL):

    0.0122%

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.46 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    5 µs

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7243BNZ Frequently Asked Questions (FAQs)

  • It is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and place the AD7243BNZ close to the analog signal sources. Additionally, use a solid ground plane and avoid routing digital signals near analog signals.
  • For low-frequency applications, it's essential to use a high-pass filter to remove DC offsets and low-frequency noise. Also, consider using a chopper-stabilized amplifier to reduce 1/f noise and increase the amplifier's gain-bandwidth product.
  • The AD7243BNZ can drive capacitive loads up to 100 pF. However, it's recommended to limit the capacitive load to 10 pF to ensure stability and optimal performance.
  • Use a low-dropout regulator (LDO) or a switching regulator with a high power supply rejection ratio (PSRR) to minimize power supply noise. Additionally, decouple the power supply lines with a 10 μF capacitor and a 100 nF capacitor in parallel.
  • The recommended operating temperature range for the AD7243BNZ is -40°C to +125°C. However, the device can operate up to +150°C for short periods during soldering or reflow processes.
