AD7243BR - Analog Devices

Description: Digital to Analog Converters - DAC CMOS 12B SERIAL IC

Download AD7243BR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

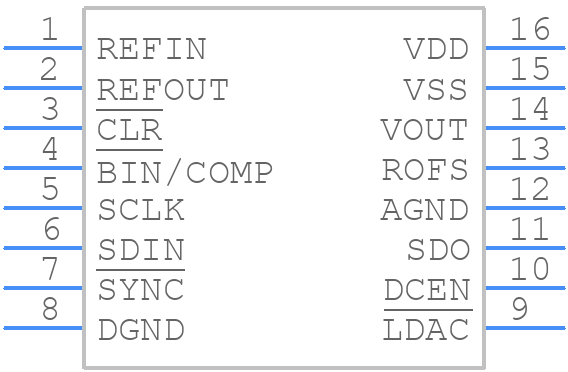

Symbol
AD7243BR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7243BR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - AD7243BR
click to zoom

AD7243BR Details

  • Manufacturer Part Number:

    AD7243BR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    5 V

  • Analog Output Voltage-Min:

    -5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, OFFSET BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e0

  • Length:

    10.3 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Current-Max:

    10 mA

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AD7243BR Frequently Asked Questions (FAQs)

  • The AD7243BR requires careful layout and placement to minimize noise and ensure proper operation. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital signal traces separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • To optimize the performance of the AD7243BR, it is recommended to follow the application notes and evaluation board design guidelines provided by Analog Devices. Additionally, engineers can experiment with different gain settings, filter configurations, and output modes to find the optimal combination for their specific application.
  • The AD7243BR is specified to operate over a temperature range of -40°C to +125°C. However, it is recommended to derate the device's performance and power consumption at extreme temperatures to ensure reliable operation.
  • Yes, the AD7243BR can be used in multi-channel applications. However, it is recommended to use separate devices for each channel to ensure optimal performance and minimize crosstalk. Alternatively, engineers can use a single device with a multiplexer or switch to select between multiple channels.
  • To troubleshoot common issues with the AD7243BR, engineers can use a combination of oscilloscopes, signal generators, and spectrum analyzers to identify the source of the problem. Additionally, they can check the device's power supply, ground connections, and signal routing to ensure proper operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7243BR Overview

Use the download button to access the AD7243BR schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AD724, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
