AD7244JNZ - Analog Devices

Description: AD7244JNZ, 14 bit-Bit DAC Dual, 250ksps, Serial, 24-Pin PDIP

Download AD7244JNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

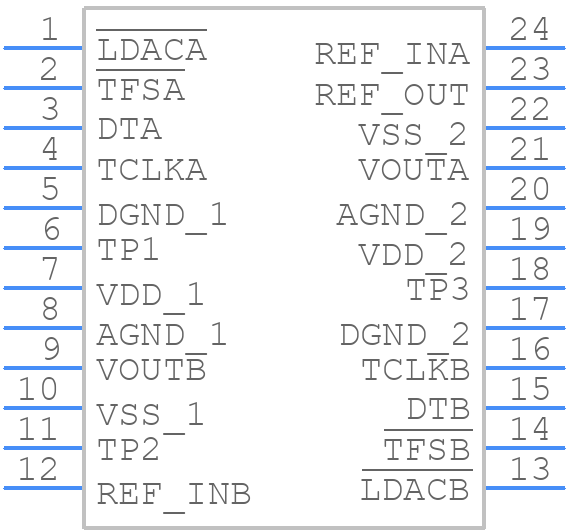

AD7244JNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7244JNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-24-1
click to zoom
3D Models
AD7244JNZ - Analog Devices - 3D model - Dual-In-Line Packages - N-24-1
click to zoom

AD7244JNZ Details

  • Manufacturer Part Number:

    AD7244JNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    0.300 INCH, PLASTIC, DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    N-24-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    3 V

  • Analog Output Voltage-Min:

    -3 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e3

  • Length:

    30.48 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    14

  • Number of Functions:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Settling Time-Nom (tstl):

    2 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7244JNZ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD7244JNZ involves keeping the analog and digital sections separate, using a ground plane, and placing the device close to the analog-to-digital converter (ADC) to minimize noise. A detailed layout guide can be found in the AD7244JNZ evaluation board documentation.
  • To optimize the performance of the AD7244JNZ in a noisy environment, use proper shielding, grounding, and decoupling techniques. Additionally, consider using a low-pass filter on the input signals, and ensure that the power supply is well-regulated and decoupled. It's also recommended to use a ferrite bead or a common-mode choke to filter out high-frequency noise.
  • The maximum clock frequency that can be used with the AD7244JNZ is 20 MHz. However, the actual clock frequency used may be limited by the specific application and the noise environment. It's recommended to consult the datasheet and the application notes for more information on clock frequency selection.
  • The AD7244JNZ outputs 12-bit data in a serial format. The output data can be handled using a microcontroller or a digital signal processor (DSP). The data can be processed and formatted according to the specific application requirements. It's recommended to consult the datasheet and the application notes for more information on data handling and processing.
  • The power consumption of the AD7244JNZ depends on the operating mode and the clock frequency. In normal operation, the device consumes around 15 mW of power. In power-down mode, the power consumption is reduced to around 1 μW. It's recommended to consult the datasheet for more information on power consumption and power management.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7244JNZ Overview

Use the download button to access the AD7244JNZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD724, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
