AD7244JRZ - Analog Devices

Description: AD7244JRZ, 14 bit-Bit DAC Dual, 250ksps, Serial, 28-Pin SOIC W

Download AD7244JRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

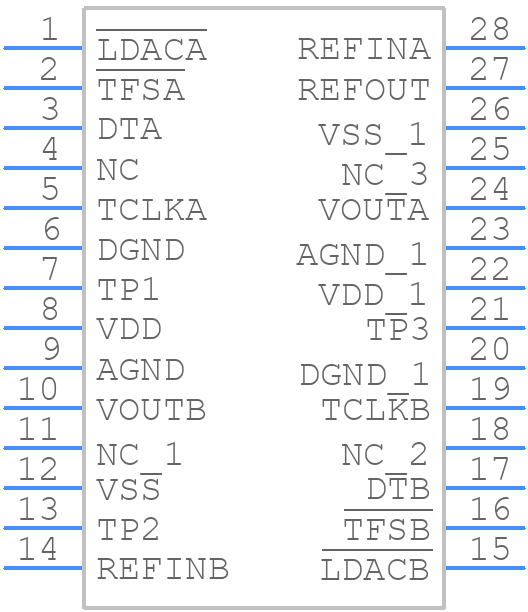

AD7244JRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7244JRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-28(SOIC)_4
click to zoom
3D Models
AD7244JRZ - Analog Devices - 3D model - Small Outline Packages - R-28(SOIC)_4
click to zoom

AD7244JRZ Details

  • Manufacturer Part Number:

    AD7244JRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, SOIC-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RW-28

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    3 V

  • Analog Output Voltage-Min:

    -3 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    17.9 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    14

  • Number of Functions:

    2

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Settling Time-Max:

    4 µs

  • Settling Time-Nom (tstl):

    2 µs

  • Supply Current-Max:

    27 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

AD7244JRZ Frequently Asked Questions (FAQs)

  • The AD7244JRZ requires careful layout and placement to minimize noise and ensure optimal performance. It's recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital traces separate. Additionally, decoupling capacitors should be placed as close to the device as possible.
  • To optimize the AD7244JRZ for low-power operation, ensure that the device is operated at the lowest possible clock frequency, disable any unused features, and use the power-down mode when not in use. Additionally, consider using a lower voltage supply and optimizing the analog input signal range to reduce power consumption.
  • The AD7244JRZ requires a two-point calibration procedure to ensure accurate conversions. The recommended procedure involves applying a known input voltage to the device, taking multiple readings, and calculating the gain and offset values. These values can then be used to correct for any errors in subsequent conversions.
  • The AD7244JRZ has built-in overvoltage and undervoltage protection, but it's still important to take precautions to prevent damage. Use voltage regulators and protection diodes to limit the input voltage to within the recommended range. Additionally, consider using external overvoltage protection circuits to ensure the device is protected from voltage spikes and surges.
  • The AD7244JRZ can be interfaced with a microcontroller using a serial peripheral interface (SPI) or inter-integrated circuit (I2C) bus. Ensure that the microcontroller is configured to match the AD7244JRZ's communication protocol and clock frequency. Additionally, use a level shifter if the microcontroller's voltage level is different from the AD7244JRZ's voltage supply.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7244JRZ Overview

Use the download button to access the AD7244JRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD724, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
