AD7245JPZ - Analog Devices

Description: AD7245JPZ, 12 bit-Bit DAC Parallel, 28-Pin PLCC

Download AD7245JPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

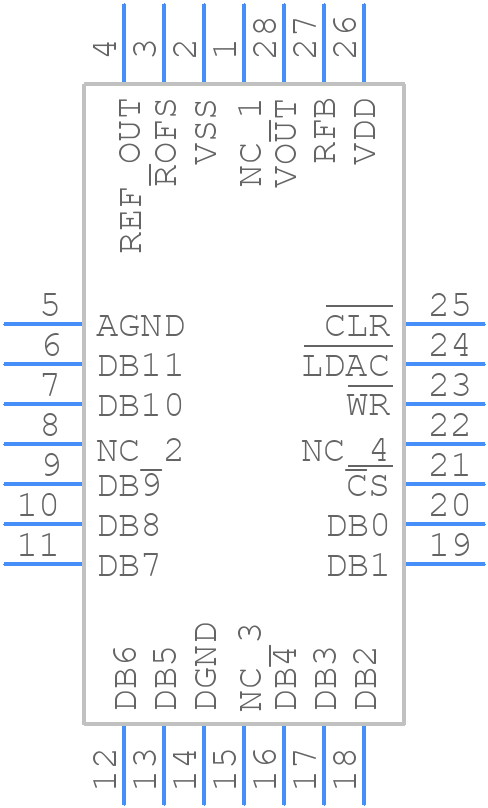

AD7245JPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

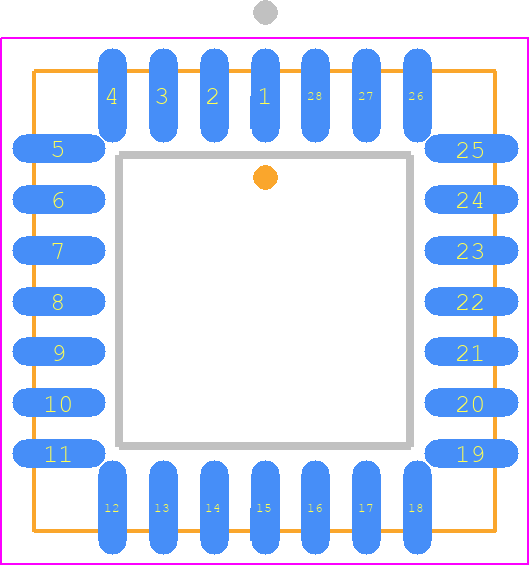

AD7245JPZ - Analog Devices PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - P-28A_1
click to zoom
3D Models
AD7245JPZ - Analog Devices - 3D model - Plastic Leaded Chip Carrier - P-28A_1
click to zoom

AD7245JPZ Details

  • Manufacturer Part Number:

    AD7245JPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QLCC

  • Package Description:

    PLASTIC, LCC-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    P-28

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Analog Output Voltage-Max:

    5 V

  • Analog Output Voltage-Min:

    -5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    S-PQCC-J28

  • JESD-609 Code:

    e3

  • Length:

    11.506 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -12 V

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Equivalence Code:

    LDCC28,.5SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.57 mm

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Width:

    11.506 mm

AD7245JPZ Frequently Asked Questions (FAQs)

  • The AD7245JPZ requires careful layout and placement to minimize noise and ensure proper operation. It's recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources.
  • To optimize the AD7245JPZ for low noise performance, ensure that the device is operated within its recommended operating conditions, use a low-noise power supply, and minimize digital noise coupling into the analog circuitry. Additionally, use shielding and guard rings to reduce electromagnetic interference (EMI) and radio-frequency interference (RFI).
  • The AD7245JPZ can operate with clock frequencies up to 20 MHz. However, the maximum clock frequency may be limited by the specific application and the quality of the clock signal. It's recommended to consult the datasheet and application notes for more information on clock frequency limitations.
  • The AD7245JPZ can be interfaced with a microcontroller or FPGA using a standard SPI interface. The device requires a 3-wire SPI interface, consisting of SCLK, SDI, and SDO pins. The microcontroller or FPGA should be configured to operate in SPI mode, and the AD7245JPZ should be connected according to the datasheet pinout diagram.
  • The power consumption of the AD7245JPZ depends on the operating conditions and the specific application. According to the datasheet, the typical power consumption is around 15 mW at 5 V supply voltage and 10 MHz clock frequency. However, the actual power consumption may vary depending on the specific use case.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7245JPZ Overview

Use the download button to access the AD7245JPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD724, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
