AD7249ANZ - Analog Devices

Description: AD7249ANZ, 12 bit-Bit DAC Dual, 125ksps, SPI, 16-Pin PDIP

Download AD7249ANZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

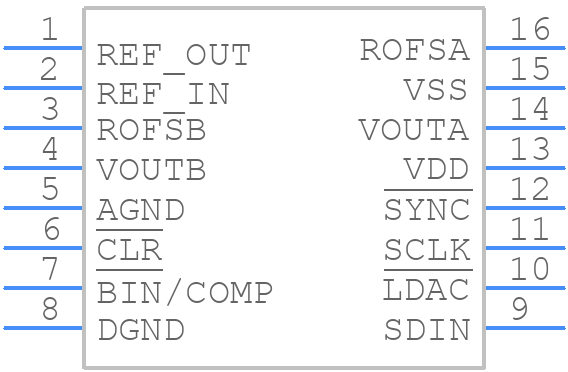

AD7249ANZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7249ANZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-16
click to zoom
3D Models
AD7249ANZ - Analog Devices - 3D model - Dual-In-Line Packages - N-16
click to zoom

AD7249ANZ Details

  • Manufacturer Part Number:

    AD7249ANZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    ROHS COMPLIANT, PLASTIC, DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    N-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    20.13 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Negative Supply Voltage-Nom:

    -12 V

  • Number of Bits:

    12

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7249ANZ Frequently Asked Questions (FAQs)

  • The AD7249ANZ requires careful layout and placement to minimize noise and ensure proper operation. It's recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources.
  • The AD7249ANZ can deliver high output currents, which can cause voltage drops and heat dissipation issues. To handle this, use a low-ESR capacitor at the output, ensure good thermal management, and consider using a current-limiting resistor or a dedicated current-sensing resistor.
  • The AD7249ANZ's output noise can be filtered using a combination of capacitors and resistors. A recommended approach is to use a low-pass filter with a cutoff frequency below the Nyquist frequency, and to add a ferrite bead or a common-mode choke to reduce high-frequency noise.
  • To ensure accuracy and linearity, it's essential to follow the recommended operating conditions, including the input voltage range, output current, and temperature range. Additionally, calibrate the device using the internal calibration feature, and consider using an external reference voltage source for improved accuracy.
  • The AD7249ANZ has a specific power-up and power-down sequence that should be followed to ensure proper operation. The device requires a controlled power-up sequence to prevent latch-up and ensure accurate output voltage. During power-down, the device should be shut down in a controlled manner to prevent damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7249ANZ Overview

Use the download button to access the AD7249ANZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD724, or try a keyword search, such as Digital to Analog Converters
