AD725ARZ-RL - Analog Devices

Description: Video ICs SOIC LOW COST VIDEO ENCODER

Download AD725ARZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

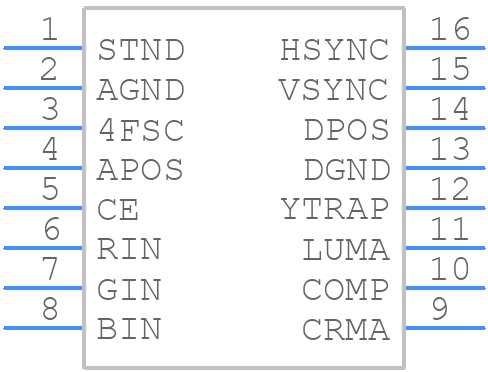

AD725ARZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD725ARZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-16 (SOIC) Wide1
click to zoom
3D Models
AD725ARZ-RL - Analog Devices - 3D model - Small Outline Packages - R-16 (SOIC) Wide1
click to zoom

AD725ARZ-RL Details

  • Manufacturer Part Number:

    AD725ARZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    COLOR SIGNAL ENCODER

  • Input Type:

    RGB

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.25 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    36 mA

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Video Standard:

    PAL; NTSC

  • Width:

    7.5 mm

AD725ARZ-RL Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD725ARZ-RL involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To optimize the performance of the AD725ARZ-RL in a noisy environment, use shielding, filtering, and decoupling techniques. Use a shielded enclosure, add ferrite beads or chokes to the power supply lines, and decouple the analog and digital power supplies. Additionally, use a low-pass filter on the analog input signals to reduce high-frequency noise.
  • The maximum operating temperature range for the AD725ARZ-RL is -40°C to +125°C. However, the device's performance may degrade at temperatures above 85°C, and it's recommended to operate the device within the -40°C to +85°C range for optimal performance.
  • Yes, the AD725ARZ-RL can be used with a single 5V power supply. However, it's recommended to use separate analog and digital power supplies to minimize noise and ensure optimal performance. If a single 5V power supply is used, ensure that it's well-regulated and decoupled to prevent noise from affecting the device's performance.
  • To troubleshoot common issues with the AD725ARZ-RL, start by checking the power supply voltages, analog input signals, and digital output signals. Verify that the device is properly configured and that the analog input signals are within the specified range. Check for noise, distortion, or oscillations on the analog input signals, and ensure that the device is properly decoupled and shielded. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines.
