AD7292BCPZ - Analog Devices

Description: Analog Devices AD7292BCPZ, 10 bit Serial ADC,, 36-Pin LFCSP

Download AD7292BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

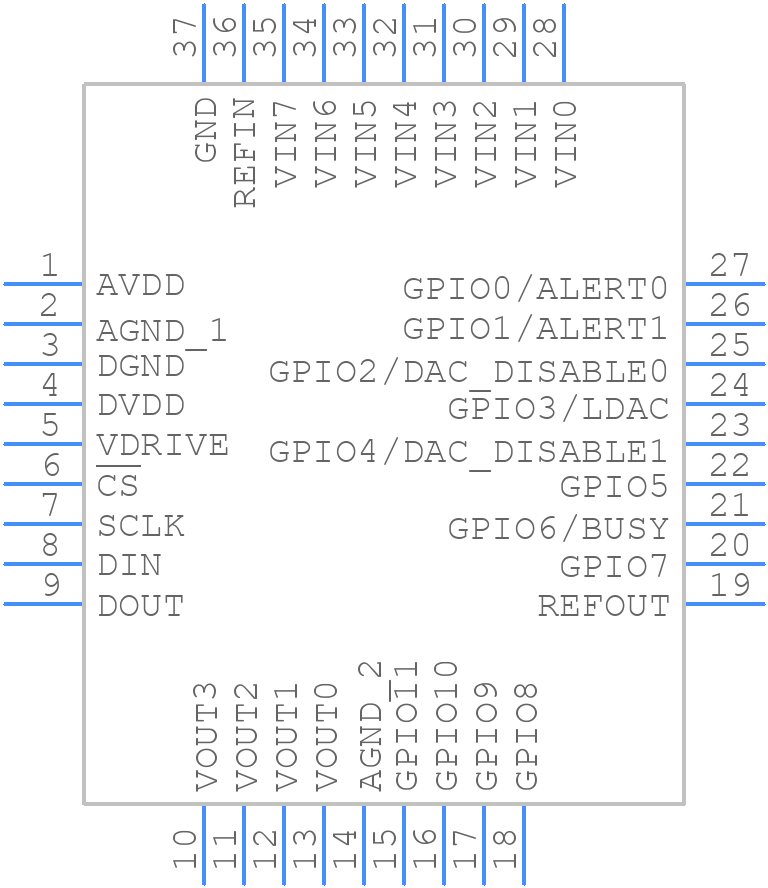

AD7292BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7292BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-36-3
click to zoom
3D Models
AD7292BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-36-3
click to zoom

AD7292BCPZ Details

  • Manufacturer Part Number:

    AD7292BCPZ

  • Source Url Status Check Date:

    2013-05-01 14:56:17.391

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    6 X 6 MM, ROHS COMPLIANT, MO-220-WJJD, LFCSP-36

  • Pin Count:

    36

  • Manufacturer Package Code:

    CP-36-3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N36

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

AD7292BCPZ Frequently Asked Questions (FAQs)

  • The AD7292BCPZ is a sensitive analog device, and proper layout and placement are crucial for optimal performance. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital signals separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • To optimize the AD7292BCPZ's performance, it is essential to understand the specific requirements of your application. This includes selecting the correct gain setting, filter configuration, and output data rate. Additionally, consider the noise performance, linearity, and offset error requirements of your application. Consult the datasheet and application notes for guidance on optimizing the device's performance.
  • The AD7292BCPZ is a high-performance analog-to-digital converter that can dissipate significant power. It is essential to consider thermal management when designing with this device. Ensure good airflow, use a heat sink if necessary, and follow the recommended thermal design guidelines to prevent overheating and ensure reliable operation.
  • Common issues with the AD7292BCPZ include incorrect configuration, noise coupling, and power supply issues. To troubleshoot, start by verifying the device's configuration and power supply. Check for noise coupling by using proper shielding and grounding techniques. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • The AD7292BCPZ is a sensitive analog device that can be susceptible to electromagnetic interference (EMI) and radio-frequency interference (RFI). To minimize the impact of EMI and RFI, use proper shielding, grounding, and filtering techniques. Ensure that the device is placed in a shielded environment, and use EMI filters on the input and output signals.
