AD7305BRUZ - Analog Devices

Description: AD7305BRUZ, 8-Bit 8 Bit DAC Quad 1Msps, Parallel, 20-Pin TSSOP

Download AD7305BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

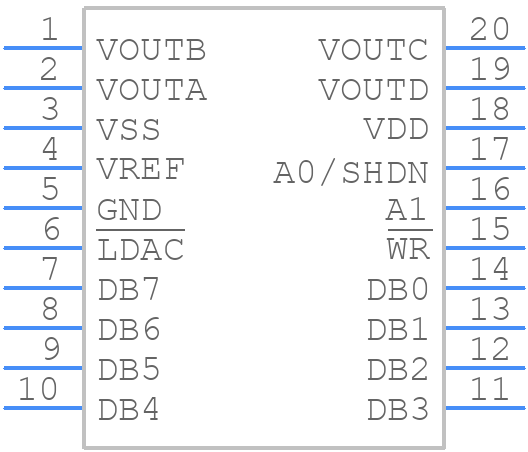

Symbol
AD7305BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7305BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - AD7305BRUZ
click to zoom
3D Models
AD7305BRUZ - Analog Devices - 3D model - Small Outline Packages - AD7305BRUZ
click to zoom

AD7305BRUZ Details

  • Manufacturer Part Number:

    AD7305BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    LEAD FREE, 1.10 MM HEIGHT, TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RU-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5 V

  • Analog Output Voltage-Min:

    -5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, 8 BITS

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    2 µs

  • Settling Time-Nom (tstl):

    1 µs

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

AD7305BRUZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the sensitive analog signals away from the digital signals. Also, use a low-ESR capacitor for the VCC pin and a 0.1uF capacitor for the AVCC pin.
  • The AD7305BRUZ has an internal calibration mechanism. To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves shorting the CAL pin to the VCC pin and then to the GND pin. Also, ensure that the device is operated within the recommended temperature range.
  • The maximum sampling rate of the AD7305BRUZ is 100 kSPS. However, the actual sampling rate may be limited by the system's clock frequency, the conversion time, and the settling time of the analog input signal.
  • The AD7305BRUZ has a built-in POR and BOR feature. To handle these features, ensure that the power supply is stable and within the recommended range. Also, add a capacitor to the VCC pin to filter out any noise and ensure a clean power-on reset.
  • The recommended method for driving the AD7305BRUZ's analog input pins is to use a low-impedance source, such as an op-amp, to drive the input signal. Also, ensure that the input signal is within the recommended range and that the input impedance is matched to the source impedance.
