AD7305BRZ - Analog Devices

Description: Analog Devices AD7305BRZ, 4-channel 8 bit Parallel DAC, 1Msps, 20-Pin SOIC W

Download AD7305BRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

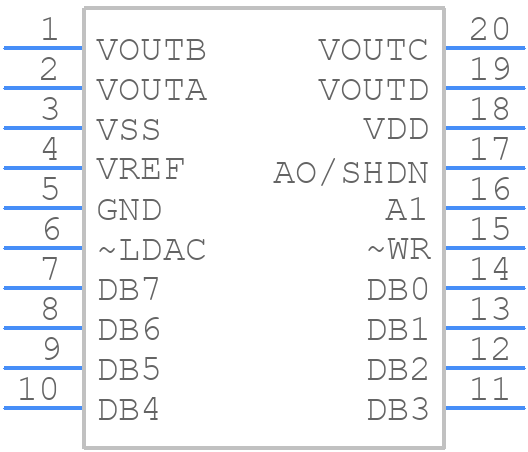

AD7305BRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7305BRZ - Analog Devices PCB footprint - Other - Other - SOIC127P1032X265-20N
click to zoom

AD7305BRZ Details

  • Manufacturer Part Number:

    AD7305BRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    MS-013AC, SOIC-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RW-20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5 V

  • Analog Output Voltage-Min:

    -5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, 8 BITS

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Settling Time-Nom (tstl):

    1 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AD7305BRZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the signal traces short and away from noise sources. Also, use a low-ESR capacitor for the VCC pin and a 0.1uF capacitor for the AVCC pin.
  • The AD7305BRZ has an internal calibration circuit that can be enabled by setting the CAL pin high. The device will then perform a self-calibration sequence. Additionally, the user can perform an external calibration by applying a known voltage to the VIN pin and adjusting the offset and gain registers accordingly.
  • The maximum sampling rate of the AD7305BRZ is 100 kSPS. The power consumption increases with the sampling rate, but the device has a power-down mode that can be used to reduce power consumption when not in use.
  • The AD7305BRZ can be interfaced with a microcontroller using the SPI or I2C interface. The device supports both 3-wire and 4-wire SPI modes, as well as I2C fast mode and fast mode plus.
  • The AD7305BRZ operates over a temperature range of -40°C to +125°C. The device's performance may vary with temperature, with a typical gain error of ±0.5% over the entire temperature range.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

AD7305BRZ Overview

Use the download button to access the AD7305BRZ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AD730, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
