AD7314ARMZ-REEL7 - Analog Devices

Description: Board Mount Temperature Sensors 10bit digital temp sensor (8ld uSOIC)IC

Download AD7314ARMZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

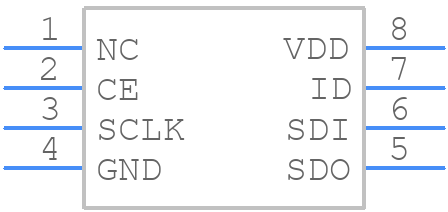

Symbol
AD7314ARMZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7314ARMZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSOP-8_2020-1
click to zoom
3D Models
AD7314ARMZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - MSOP-8_2020-1
click to zoom

AD7314ARMZ-REEL7 Details

  • Manufacturer Part Number:

    AD7314ARMZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Accuracy-Max (Cel):

    2 Cel

  • Body Breadth:

    3 mm

  • Body Height:

    0.95 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    10

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.3 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -35 °C

  • Output Interface Type:

    4-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.65 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Termination Type:

    SOLDER

AD7314ARMZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD7314 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To ensure accurate temperature measurement, it's essential to calibrate the device, use a high-precision voltage reference, and minimize thermal gradients on the PCB. Additionally, the device should be placed close to the temperature sensor, and the sensor should be thermally connected to the device.
  • The maximum clock frequency that can be used with the AD7314 is 1.5 MHz. However, it's recommended to use a clock frequency of 1 MHz or less to ensure reliable operation and minimize power consumption.
  • Yes, the AD7314 can be used in a multi-channel application. The device has a built-in multiplexer that allows it to connect to multiple analog input channels. The device can be configured to scan through the channels and convert the analog signals to digital codes.
  • The power-on reset (POR) timing for the AD7314 is typically around 10 ms. This means that the device requires a minimum of 10 ms to power up and become operational after power is applied.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7314ARMZ-REEL7 Overview

Use the download button to access the AD7314ARMZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD731, or try a keyword search, such as Temperature Sensors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
