AD7314ARMZ - Analog Devices

Description: AD7314ARMZ, 10bit Temperature Sensor ±1°C Serial-SPI 2.65 to 5.5V 8-Pin MSOP

Download AD7314ARMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

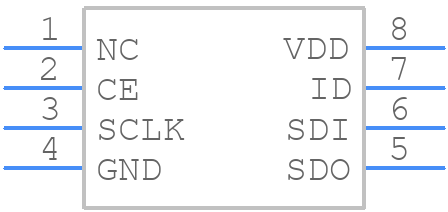

Symbol
AD7314ARMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7314ARMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-8 (MSOP)_2020
click to zoom
3D Models
AD7314ARMZ - Analog Devices - 3D model - Small Outline Packages - RM-8 (MSOP)_2020
click to zoom

AD7314ARMZ Details

  • Manufacturer Part Number:

    AD7314ARMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Accuracy-Max (Cel):

    2 Cel

  • Body Breadth:

    3 mm

  • Body Height:

    0.95 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    10

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.3 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -35 °C

  • Output Interface Type:

    4-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.65 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Termination Type:

    SOLDER

AD7314ARMZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, place the AD7314ARMZ close to the analog signal sources and keep the analog signal paths as short as possible.
  • To ensure accuracy, calibrate the AD7314ARMZ using a precision temperature source, and use a thermocouple with a high accuracy rating. Also, ensure that the thermocouple is properly connected and that the AD7314ARMZ is properly configured for the specific thermocouple type.
  • The maximum cable length for the thermocouple connection to the AD7314ARMZ depends on the type of thermocouple and the noise environment. As a general rule, keep the cable length as short as possible (less than 10 feet) to minimize noise pickup and ensure accurate measurements.
  • Yes, but you need to ensure that the AD7314ARMZ is properly configured for the specific thermocouple type, and that the thermocouple is compatible with the AD7314ARMZ. You may need to adjust the gain and offset settings, and ensure that the thermocouple is properly calibrated.
  • To troubleshoot issues with the AD7314ARMZ, check the power supply voltage, ensure that the thermocouple is properly connected, and verify that the AD7314ARMZ is properly configured. Also, check for noise sources in the environment and ensure that the AD7314ARMZ is properly shielded.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7314ARMZ Overview

Use the download button to access the AD7314ARMZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD731, or try a keyword search, such as Temperature Sensors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
