AD73411BB-40 - Analog Devices

Description: IC ANALOG FRONT END W/DSP 119BGA

Download AD73411BB-40 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD73411BB-40 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

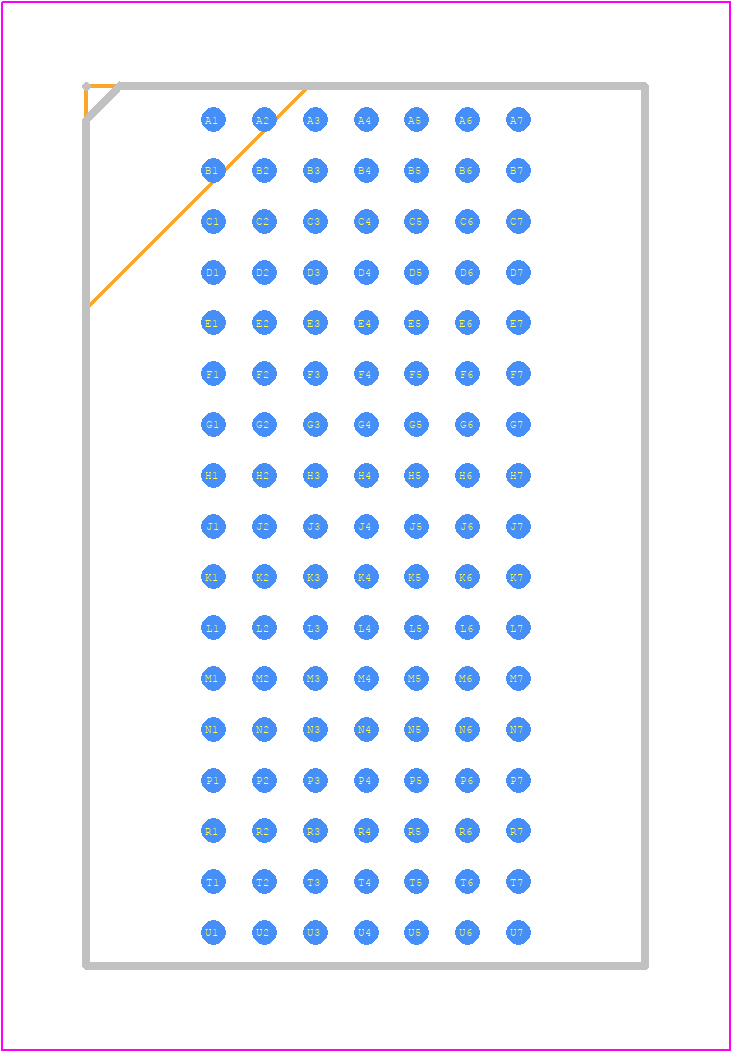

AD73411BB-40 - Analog Devices PCB footprint - BGA - BGA - B-119
click to zoom
3D Models
AD73411BB-40 - Analog Devices - 3D model - BGA - B-119
click to zoom

AD73411BB-40 Details

  • Manufacturer Part Number:

    AD73411BB-40

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    BGA

  • Package Description:

    PLASTIC, BGA-119

  • Pin Count:

    119

  • HTS Code:

    8542.31.00.35

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Address Bus Width:

    14

  • Barrel Shifter:

    YES

  • Bit Size:

    16

  • Boundary Scan:

    NO

  • Clock Frequency-Max:

    16.384 MHz

  • External Data Bus Width:

    24

  • Format:

    FIXED POINT

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    R-PBGA-B119

  • JESD-609 Code:

    e0

  • Length:

    22 mm

  • Low Power Mode:

    YES

  • Number of Terminals:

    119

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA119,7X17,50

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Qualification Status:

    Not Qualified

  • RAM (words):

    8192

  • Seated Height-Max:

    2.27 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BOTTOM

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER

AD73411BB-40 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD73411BB-40 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. It's also recommended to use a 4-layer PCB with a dedicated power plane and to follow the layout guidelines provided in the datasheet.
  • To ensure accurate temperature measurement with the AD73411BB-40, it's essential to calibrate the device, use a high-accuracy voltage reference, and minimize thermal gradients on the PCB. Additionally, the device should be operated within its specified temperature range, and the thermistor or temperature sensor should be properly connected and calibrated.
  • The maximum clock frequency that can be used with the AD73411BB-40 is 40 MHz. However, the actual clock frequency used may be limited by the specific application and the noise tolerance of the system.
  • Yes, the AD73411BB-40 can be used in a multi-channel configuration. The device has a serial interface that allows multiple devices to be connected to a single microcontroller or DSP. However, the specific implementation details will depend on the application and the required channel count.
  • The power-on reset (POR) and brown-out reset (BOR) functions of the AD73411BB-40 can be handled by using an external reset circuit or by using a microcontroller or DSP to monitor the power supply voltage and generate a reset signal when necessary. The specific implementation details will depend on the application and the required reset functionality.
