AD7376ARUZ10 - Analog Devices

Description: AD7376ARUZ10, Digital Potentiometer 10kΩ 128-Position Serial-3 Wire, Serial-SPI 14-Pin TSSOP

Download AD7376ARUZ10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

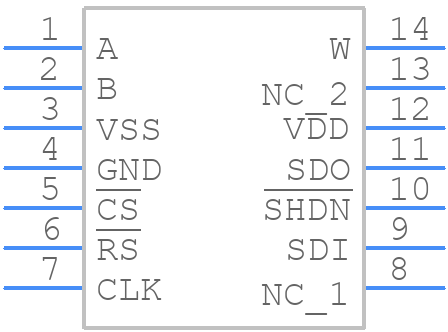

Symbol
AD7376ARUZ10 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7376ARUZ10 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-14
click to zoom
3D Models
AD7376ARUZ10 - Analog Devices - 3D model - Small Outline Packages - RU-14
click to zoom

AD7376ARUZ10 Details

  • Manufacturer Part Number:

    AD7376ARUZ10

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AB-1, TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    RU-14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    IT CAN ALSO OPERATE FRON 4.5 TO 33V SINGLE SUPPLY

  • Bandwidth-Nom:

    0.47 kHz

  • Control Interface:

    3-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Functions:

    1

  • Number of Positions:

    128

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    30%

  • Resistor Terminal Voltage-Max:

    15 V

  • Resistor Terminal Voltage-Min:

    -15 V

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    35 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    10000 Ω

  • Width:

    4.4 mm

AD7376ARUZ10 Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD7376ARUZ10 involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) it is connected to. Additionally, it is recommended to use a 4-layer PCB with a dedicated analog ground plane and a separate digital ground plane.
  • To optimize the performance of the AD7376ARUZ10 in a noisy environment, it is recommended to use shielding, filtering, and grounding techniques. This includes using a metal shield around the device, adding filters to the input and output signals, and connecting the device to a clean analog ground. Additionally, using a low-noise power supply and minimizing the distance between the device and the ADC or DAC can also help to reduce noise.
  • The maximum operating temperature range for the AD7376ARUZ10 is -40°C to +125°C. However, it is recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • Common issues with the AD7376ARUZ10 include incorrect output voltage, noise, and oscillations. To troubleshoot these issues, it is recommended to check the power supply voltage, input and output connections, and the PCB layout. Additionally, using an oscilloscope to measure the output voltage and frequency can help to identify the root cause of the issue.
  • The recommended power-up sequence for the AD7376ARUZ10 involves applying the power supply voltage (VCC) before applying the input voltage (VIN). This ensures that the internal bias voltage is established before the input voltage is applied, which helps to prevent latch-up and ensures proper operation.
