AD7376ARUZ50 - Analog Devices

Description: AD7376ARUZ50, Digital Potentiometer 50kΩ 128-Position Serial-3 Wire, Serial-SPI 14-Pin TSSOP

Download AD7376ARUZ50 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

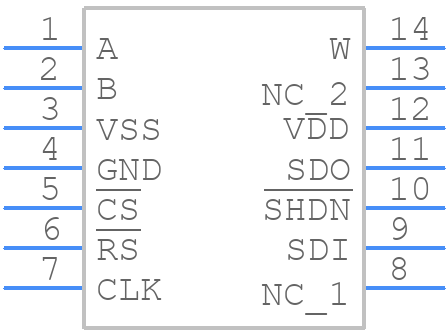

Symbol
AD7376ARUZ50 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7376ARUZ50 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-14
click to zoom
3D Models
AD7376ARUZ50 - Analog Devices - 3D model - Small Outline Packages - RU-14
click to zoom

AD7376ARUZ50 Details

  • Manufacturer Part Number:

    AD7376ARUZ50

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AB-1, TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    RU-14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    IT CAN ALSO OPERATE FRON 4.5 TO 33V SINGLE SUPPLY

  • Bandwidth-Nom:

    0.09 kHz

  • Control Interface:

    3-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Functions:

    1

  • Number of Positions:

    128

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    30%

  • Resistor Terminal Voltage-Max:

    5 V

  • Resistor Terminal Voltage-Min:

    -5 V

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    35 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    50000 Ω

  • Width:

    4.4 mm

AD7376ARUZ50 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD7376ARUZ50 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure accuracy, it's essential to calibrate the AD7376ARUZ50 using a precision temperature source, and to use a thermocouple with a high accuracy rating. Additionally, the thermocouple should be connected to the AD7376ARUZ50 using a low-noise, shielded cable.
  • The maximum cable length for the thermocouple connection to the AD7376ARUZ50 is typically limited by the noise pickup and signal attenuation. As a general rule, the cable length should be kept as short as possible, but it's recommended to keep it under 10 feet (3 meters) to ensure reliable operation.
  • No, the AD7376ARUZ50 is specifically designed to work with thermocouples, and it's not compatible with thermistors or RTDs. If you need to measure temperature using a thermistor or RTD, you'll need to use a different IC or a dedicated thermistor/RTD amplifier.
  • The AD7376ARUZ50 has an internal CJC circuit that compensates for the temperature of the IC itself. However, you may need to add an external CJC circuit if you're using a thermocouple with a high temperature range or if you need to achieve high accuracy. Consult the datasheet and application notes for more information.
