AD7376ARWZ10 - Analog Devices

Description: AD7376ARWZ10, Digital Potentiometer 10kΩ 128-Position Serial-3 Wire, Serial-SPI 16-Pin SOIC W

Download AD7376ARWZ10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

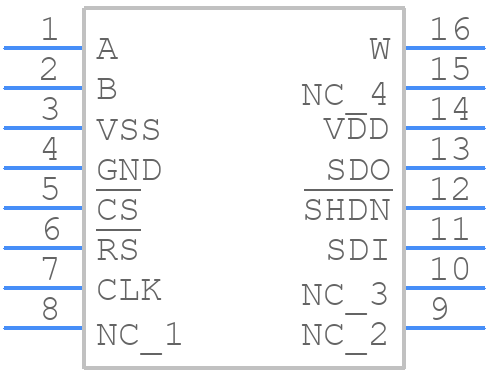

AD7376ARWZ10 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7376ARWZ10 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SOIC R16
click to zoom
3D Models
AD7376ARWZ10 - Analog Devices - 3D model - Small Outline Packages - SOIC R16
click to zoom

AD7376ARWZ10 Details

  • Manufacturer Part Number:

    AD7376ARWZ10

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-013AA, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    IT CAN ALSO OPERATE FRON 4.5 TO 33V SINGLE SUPPLY

  • Bandwidth-Nom:

    0.47 kHz

  • Control Interface:

    3-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Functions:

    1

  • Number of Positions:

    128

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    30%

  • Resistor Terminal Voltage-Max:

    15 V

  • Resistor Terminal Voltage-Min:

    -15 V

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    35 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    10000 Ω

  • Width:

    7.5 mm

AD7376ARWZ10 Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD7376ARWZ10 involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) it is connected to. Additionally, it is recommended to use a 4-layer PCB with a dedicated analog ground plane and a separate digital ground plane.
  • To optimize the performance of the AD7376ARWZ10 in a noisy environment, it is recommended to use shielding, filtering, and decoupling techniques. This includes using a metal shield around the device, adding filters to the input and output signals, and decoupling the power supply lines with capacitors.
  • The maximum operating temperature range for the AD7376ARWZ10 is -40°C to +125°C. However, the device's performance may degrade at temperatures above 85°C, and it is recommended to operate the device within the -20°C to +70°C range for optimal performance.
  • Yes, the AD7376ARWZ10 is suitable for use in high-reliability or aerospace applications. It is manufactured using a high-reliability process and is screened to ensure compliance with the requirements of the aerospace industry. However, it is recommended to consult with Analog Devices Inc. for specific requirements and testing protocols.
  • Common issues with the AD7376ARWZ10 include incorrect pin connections, inadequate power supply decoupling, and electromagnetic interference (EMI). To troubleshoot these issues, it is recommended to check the device's pin connections, ensure proper power supply decoupling, and use EMI shielding and filtering techniques.
