AD7376ARWZ100 - Analog Devices

Description: AD7376ARWZ100, Digital Potentiometer 100kΩ 128-Position Serial-3 Wire, Serial-SPI 16-Pin SOIC W

Download AD7376ARWZ100 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

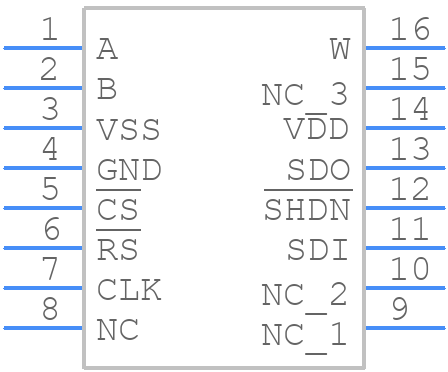

AD7376ARWZ100 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7376ARWZ100 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-16 (SOIC)
click to zoom
3D Models
AD7376ARWZ100 - Analog Devices - 3D model - Small Outline Packages - RW-16 (SOIC)
click to zoom

AD7376ARWZ100 Details

  • Manufacturer Part Number:

    AD7376ARWZ100

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-013AA, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    IT CAN ALSO OPERATE FRON 4.5 TO 33V SINGLE SUPPLY

  • Bandwidth-Nom:

    0.05 kHz

  • Control Interface:

    3-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Functions:

    1

  • Number of Positions:

    128

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    30%

  • Resistor Terminal Voltage-Max:

    5 V

  • Resistor Terminal Voltage-Min:

    -5 V

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    35 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    100000 Ω

  • Width:

    7.5 mm

AD7376ARWZ100 Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD7376ARWZ100 involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the analog power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane to minimize noise and interference.
  • To optimize the performance of the AD7376ARWZ100 in a noisy environment, use shielding, filtering, and decoupling to minimize electromagnetic interference (EMI). Use a low-pass filter at the input, and consider using a ferrite bead or a common-mode choke to filter out high-frequency noise. Additionally, use a low-ESR capacitor for decoupling and place it close to the device.
  • The AD7376ARWZ100 is rated for operation from -40°C to +125°C. However, the device's accuracy and linearity may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance.
  • To ensure the AD7376ARWZ100 is properly calibrated, follow the calibration procedure outlined in the datasheet. This typically involves applying a known input voltage and adjusting the offset and gain trim pins to achieve the desired output. It's also recommended to use a high-precision voltage reference and a low-noise power supply to minimize errors.
  • The recommended power-up sequence for the AD7376ARWZ100 involves applying the analog power supply (VCC) before the digital power supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent latch-up and ensures proper device operation.
