AD7376ARWZ50 - Analog Devices

Description: AD7376ARWZ50, Digital Potentiometer 50kΩ 128-Position Serial-3 Wire, Serial-SPI 16-Pin SOIC W

Download AD7376ARWZ50 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

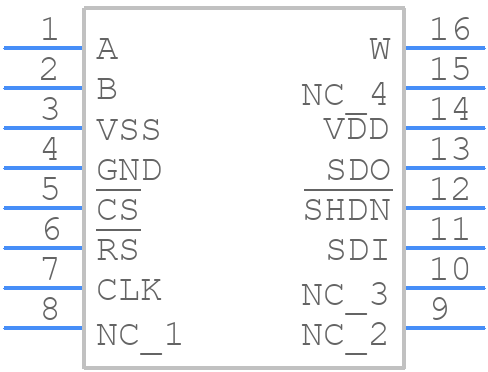

Symbol
AD7376ARWZ50 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7376ARWZ50 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-16 (SOIC)
click to zoom
3D Models
AD7376ARWZ50 - Analog Devices - 3D model - Small Outline Packages - RW-16 (SOIC)
click to zoom

AD7376ARWZ50 Details

  • Manufacturer Part Number:

    AD7376ARWZ50

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-013AA, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    IT CAN ALSO OPERATE FRON 4.5 TO 33V SINGLE SUPPLY

  • Bandwidth-Nom:

    0.09 kHz

  • Control Interface:

    3-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Functions:

    1

  • Number of Positions:

    128

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    30%

  • Resistor Terminal Voltage-Max:

    5 V

  • Resistor Terminal Voltage-Min:

    -5 V

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    35 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    50000 Ω

  • Width:

    7.5 mm

AD7376ARWZ50 Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD7376ARWZ50 involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) it is connected to. Additionally, it is recommended to use a 4-layer PCB with a dedicated analog and digital ground plane.
  • To optimize the performance of the AD7376ARWZ50 in a noisy environment, use shielding, filtering, and grounding techniques to minimize electromagnetic interference (EMI) and radio-frequency interference (RFI). Additionally, use a low-pass filter at the input to remove high-frequency noise and ensure that the power supply is well-regulated and decoupled.
  • The maximum operating temperature range for the AD7376ARWZ50 is -40°C to +125°C. However, the device is specified to operate from -40°C to +85°C, and the performance may degrade at temperatures above 85°C.
  • Yes, the AD7376ARWZ50 is suitable for use in high-reliability and aerospace applications. It is manufactured using a high-reliability process and is screened to ensure that it meets the requirements of these applications. However, it is recommended to consult with Analog Devices Inc. for specific requirements and testing.
  • To troubleshoot issues with the AD7376ARWZ50, start by checking the power supply voltage, input and output connections, and the PCB layout. Use an oscilloscope to check the input and output waveforms, and verify that the device is operating within its specified temperature range. Consult the datasheet and application notes for troubleshooting guidelines and contact Analog Devices Inc. support if necessary.
