AD737ANZ - Analog Devices

Description: AD737ANZ, True RMS-DC Converter, 8-Pin, PDIP

Download AD737ANZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

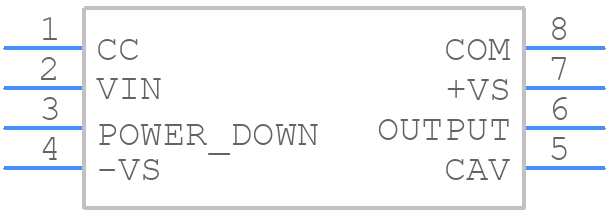

Symbol
AD737ANZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD737ANZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP-(N-8)
click to zoom
3D Models
AD737ANZ - Analog Devices - 3D model - Dual-In-Line Packages - PDIP-(N-8)
click to zoom

AD737ANZ Details

  • Manufacturer Part Number:

    AD737ANZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    LEADFREE, PLASTIC, MS-001, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    N-8

  • HTS Code:

    8542.39.00.50

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Converter Type:

    RMS TO DC CONVERTER

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.27 mm

  • Linearity Error-Max (EL):

    0.35%

  • Negative Supply Voltage-Max:

    -16.5 V

  • Negative Supply Voltage-Min:

    -3.2 V

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    0.005 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Positive Input Voltage-Max:

    1 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max:

    0.21 mA

  • Supply Voltage-Max:

    16.5 V

  • Supply Voltage-Min:

    2.8 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Total Error-Max:

    2%

  • Width:

    7.62 mm

AD737ANZ Frequently Asked Questions (FAQs)

  • The AD737ANZ is a high-precision, low-noise amplifier, and proper layout and placement are crucial to achieve optimal performance. It is recommended to place the device close to the signal source, use a ground plane, and keep the input and output traces short and separate to minimize noise coupling. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • The AD737ANZ is specified to operate from -40°C to +125°C. To ensure operation within this range, the device should be mounted on a suitable heat sink, and the ambient temperature should be kept within the specified range. Additionally, the device's power dissipation should be calculated and kept within the recommended limits to prevent overheating.
  • The AD737ANZ is designed to drive a load impedance of 2 kΩ or higher, and the input impedance is typically in the range of 1 MΩ to 10 MΩ. However, the optimal input and output impedance may vary depending on the specific application and signal frequency. It is recommended to consult the datasheet and application notes for more information.
  • Yes, the AD737ANZ can be used in a single-supply configuration, but it requires careful consideration of the input and output voltage ranges. The device's input common-mode range is limited to 2.5 V below the positive supply rail, and the output voltage swing is limited to 1.5 V below the positive supply rail. Additionally, the device's offset voltage and bias current may vary depending on the supply voltage.
  • The power dissipation of the AD737ANZ can be calculated using the following formula: Pd = (Vcc x Icc) + (Vee x Iee), where Vcc and Vee are the positive and negative supply voltages, and Icc and Iee are the corresponding supply currents. The maximum power dissipation is specified as 500 mW, and the device should be operated within this limit to prevent overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD737ANZ Overview

Use the download button to access the AD737ANZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD737, or try a keyword search, such as Analog Special Function Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
