It's recommended to place the AD737JNZ close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) it's connected to, and to use a ground plane to minimize noise. Additionally, keep the input and output traces short and away from digital signals.
The AD737JNZ has a rail-to-rail output stage, but the output voltage swing is limited by the supply voltage. To handle this, ensure the load impedance is high enough to prevent excessive current draw, and consider adding an output buffer or amplifier if necessary.
Power up the AD737JNZ with the analog supply (VCC) first, followed by the digital supply (VDD). This ensures the internal biasing and protection circuits are properly initialized.
To minimize power consumption, operate the AD737JNZ at the lowest possible supply voltage (VCC) while maintaining the required output voltage swing. Additionally, consider using a low-power mode or shutdown feature if available.
The AD737JNZ has a maximum junction temperature of 150°C. Ensure good thermal conduction by using a heat sink or thermal pad, and avoid blocking airflow around the device. Monitor the device temperature and reduce power consumption or provide additional cooling if necessary.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AD737JNZ Overview

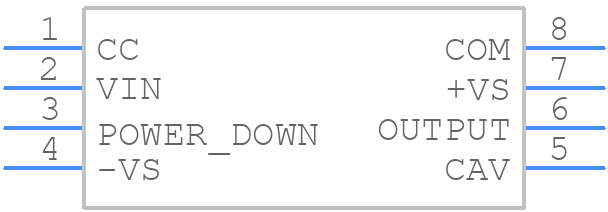

Use the download button to access the AD737JNZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD737,
or try a keyword search, such as Analog Special Function Converters
