AD7398BRZ-REEL - Analog Devices

Description: Digital to Analog Converters - DAC Quad Serial-Input 12-Bit

Download AD7398BRZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

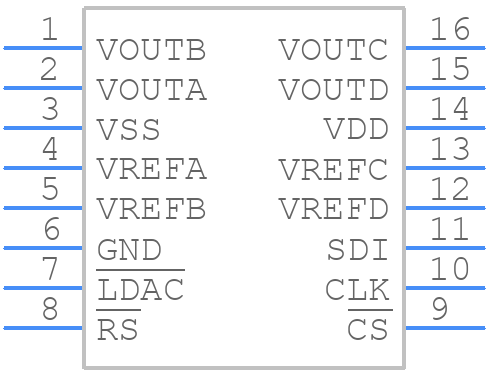

Symbol
AD7398BRZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7398BRZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-16 (SOIC)
click to zoom
3D Models
AD7398BRZ-REEL - Analog Devices - 3D model - Small Outline Packages - RW-16 (SOIC)
click to zoom

AD7398BRZ-REEL Details

  • Manufacturer Part Number:

    AD7398BRZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-013AA, WSOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Linearity Error-Max (EL):

    0.0366%

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AD7398BRZ-REEL Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD7398BRZ-REEL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane to reduce noise coupling.
  • To ensure accuracy and linearity over the entire operating temperature range, it's recommended to use a high-quality voltage reference, such as the ADR4520, and to calibrate the device at multiple temperatures. Additionally, the device should be operated within its specified operating temperature range, and the power supply should be well-regulated and noise-free.
  • The recommended power-up sequence for the AD7398BRZ-REEL is to first apply the analog power supply (VCC), followed by the digital power supply (VDD), and then the logic inputs. This sequence helps to prevent damage or incorrect operation due to voltage sequencing issues.
  • The output voltage settling time of the AD7398BRZ-REEL can be handled by using a settling time calculator, such as the one provided by Analog Devices, to determine the required settling time based on the output voltage and load capacitance. Additionally, the device can be operated in a buffered mode to reduce the settling time, and the output can be synchronized with a clock signal to ensure accurate sampling.
  • The AD7398BRZ-REEL is a high-frequency device and can be susceptible to EMI and RFI. To minimize their impact, it's recommended to use a shielded enclosure, keep the device away from high-frequency sources, and use a low-pass filter on the output. Additionally, the device should be operated with a well-regulated power supply, and the PCB should be designed with EMI and RFI in mind.
