AD7398WBRUZ-RL7 - Analog Devices

Description: Quad, Serial-Input 12-Bit DAC 3 V to 5 V,−40°C to +125°C

Download AD7398WBRUZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

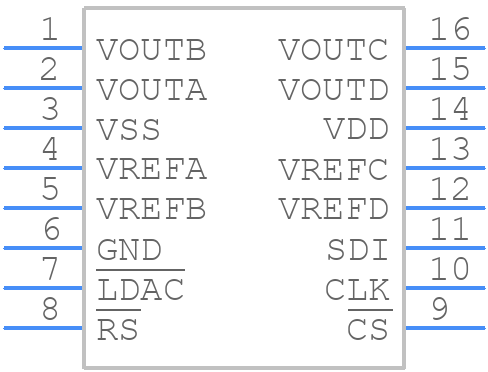

Symbol
AD7398WBRUZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7398WBRUZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16
click to zoom
3D Models
AD7398WBRUZ-RL7 - Analog Devices - 3D model - Small Outline Packages - RU-16
click to zoom

AD7398WBRUZ-RL7 Details

  • Manufacturer Part Number:

    AD7398WBRUZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    1.10 MM HEIGHT, ROHS COMPLIANT, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0366%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7398WBRUZ-RL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the AD7398WBRUZ-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it's recommended to place the device close to the analog signal sources and to use shielding to reduce electromagnetic interference (EMI).
  • To ensure the accuracy and linearity of the AD7398WBRUZ-RL7's DAC output, it's essential to follow the recommended calibration procedure, use a high-quality voltage reference, and maintain a stable power supply. Additionally, the device should be operated within its specified temperature range, and the output should be buffered with an op-amp to reduce the output impedance.
  • The maximum clock frequency that can be used with the AD7398WBRUZ-RL7 is 50 MHz. However, the actual clock frequency used should be determined by the specific application requirements and the device's settling time.
  • The power-on reset (POR) and brown-out reset (BOR) features of the AD7398WBRUZ-RL7 can be handled by using an external reset circuit or by using the device's internal reset circuitry. The POR feature ensures that the device is in a known state after power-up, while the BOR feature resets the device in case of a power supply brown-out.
  • The recommended method for driving the AD7398WBRUZ-RL7's digital inputs is to use a CMOS-compatible logic family, such as LVTTL or LVCMOS, with a maximum input voltage of 3.6 V. The input signals should be properly terminated to prevent ringing and reflections.
