AD7399BRUZ-REEL7 - Analog Devices

Description: Quad, Serial-Input 10-Bit DAC

Download AD7399BRUZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

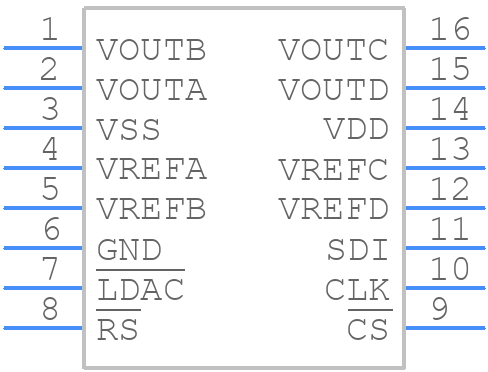

Symbol
AD7399BRUZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7399BRUZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-14
click to zoom
3D Models
AD7399BRUZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RU-14
click to zoom

AD7399BRUZ-REEL7 Details

  • Manufacturer Part Number:

    AD7399BRUZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    1.10 MM HEIGHT, ROHS COMPLIANT, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    6 µs

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7399BRUZ-REEL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signals away from the digital signals. Additionally, use short and direct traces for the analog signals, and avoid running analog signals near the digital clock signals.
  • For unipolar output, connect the VREF pin to a reference voltage, and for bipolar output, connect the VREF pin to a voltage divider that sets the midpoint of the output range. Additionally, ensure the correct configuration of the OFS and GAIN pins to set the desired output range.
  • The recommended power-up sequence is to apply the analog supply voltage (VCC) first, followed by the digital supply voltage (VDD), and then the clock signal. This ensures that the internal circuitry is properly initialized and configured before operation.
  • To minimize output voltage glitches, use an external capacitor (e.g., 10nF) between the output pin and ground to filter out high-frequency noise. Additionally, consider using a soft-start circuit or a voltage clamp to limit the output voltage during power-up or output changes.
  • The AD7399BRUZ-REEL7 can drive capacitive loads up to 1nF. However, excessive capacitive loading can cause output instability or oscillations. To ensure stability, use a series resistor (e.g., 10Ω) to limit the capacitive loading, or consider using an output buffer amplifier.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7399BRUZ-REEL7 Overview

Use the download button to access the AD7399BRUZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD739, or try a keyword search, such as Digital to Analog Converters
