AD7399BRUZ - Analog Devices

Description: AD7399BRUZ, 10 bit-Bit DAC Quad 167ksps, SPI, 16-Pin TSSOP

Download AD7399BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

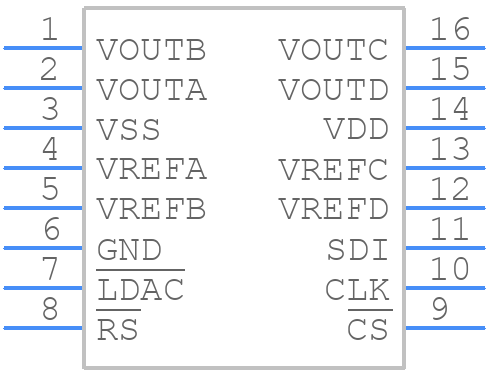

Symbol
AD7399BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7399BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP
click to zoom
3D Models
AD7399BRUZ - Analog Devices - 3D model - Small Outline Packages - TSSOP
click to zoom

AD7399BRUZ Details

  • Manufacturer Part Number:

    AD7399BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    1.10 MM HEIGHT, ROHS COMPLIANT, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    6 µs

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7399BRUZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the AD7399BRUZ involves separating analog and digital signals, using a solid ground plane, and minimizing trace lengths and loops. It's also recommended to place the device close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) it's connected to, and to use a low-impedance power supply.
  • The AD7399BRUZ requires a one-time calibration process to ensure accurate voltage output. This involves applying a known input voltage and adjusting the internal DAC registers to achieve the desired output voltage. The calibration process is typically done using a microcontroller or other external device that communicates with the AD7399BRUZ via its serial interface.
  • The AD7399BRUZ has a maximum output current capability of 10 mA. If the output current exceeds this limit, the output voltage accuracy may be affected due to the internal output impedance of the device. To ensure accurate output voltage, it's recommended to keep the output current below the maximum rating and to use an external buffer amplifier if higher output currents are required.
  • The AD7399BRUZ has built-in overvoltage and undervoltage protection on its input and output pins. If an overvoltage or undervoltage condition is detected, the device will enter a fault mode and the output voltage will be clamped to prevent damage to the device or external circuitry. The device will automatically recover when the fault condition is removed.
  • The AD7399BRUZ is a high-power device that requires proper thermal management to ensure reliable operation and prevent overheating. The device has a thermal pad on the bottom of the package that should be connected to a heat sink or a thermal plane on the PCB. The thermal management strategy should be designed to keep the device's junction temperature below 150°C to ensure reliable operation and prevent thermal shutdown.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7399BRUZ Overview

Use the download button to access the AD7399BRUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD739, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
