AD7401AYRWZ-RL - Analog Devices

Description: ► 20 MHz maximum external clock rate ► Second-order modulator ► 16 bits, no missing codes ► ±2 LSB INL typical at 16 bits ► 1 µV/°C typical offset drift ► On-board digital isolator ► On-board reference ► ±250 mV analog input range ► Low power operation: 17 mA typical at 5.5 V ► −40°C to +125°C operating range ► 16-lead SOIC package ► Internal clock version: AD7400A ► Safety and regulatory approvals ► UL 1577 ► VISO = 5000 V rms for 1 minute ► IEC / CSA 62368-1 ► IEC / CSA 61010-1 ► DIN EN I

Download AD7401AYRWZ-RL Model

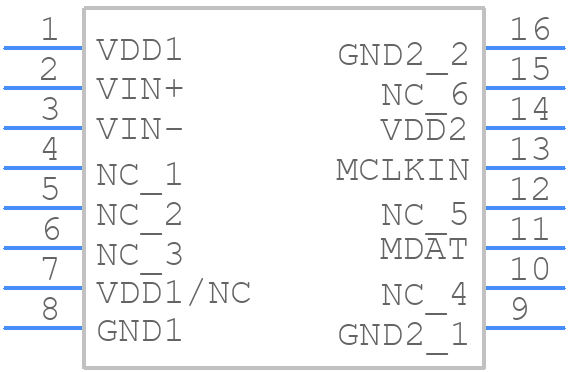

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AD7401AYRWZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - . 16-Lead Standard Small Outline Package [SOIC_W] Wide Body (RW-16)
click to zoom
3D Models
AD7401AYRWZ-RL - Analog Devices  - 3D model - Small Outline Packages - . 16-Lead Standard Small Outline Package [SOIC_W] Wide Body (RW-16)
click to zoom

AD7401AYRWZ-RL Details

  • Manufacturer Part Number:

    AD7401AYRWZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    0.25 V

  • Analog Input Voltage-Min:

    -0.25 V

  • Conversion Time-Max:

    0.2 µs

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Linearity Error-Max (EL):

    0.07019%

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Sample Rate:

    20 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    12 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm
