AD74115BCPZ-RL7 - Analog Devices

Description: Single-Channel, Software Configurable Input and Output 16 b 9.6k SPI 48-LFCSP (7x7)-40°C ~ 105°C

Download AD74115BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

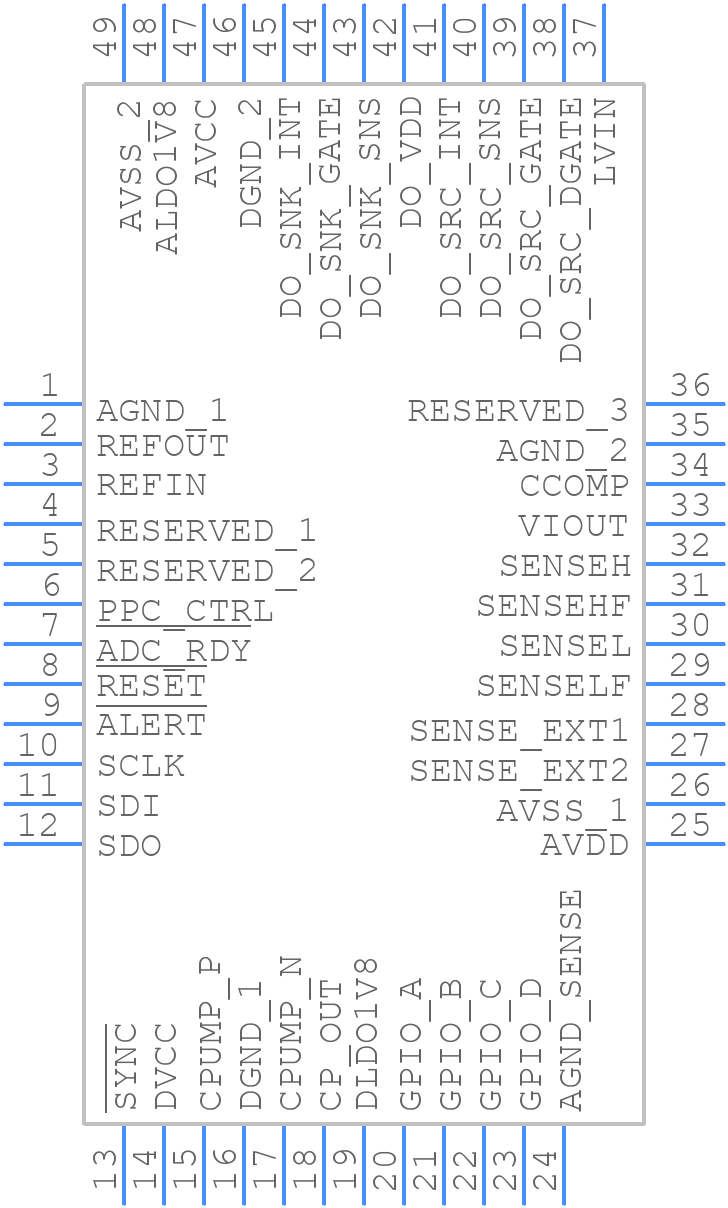

AD74115BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD74115BCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-48-13_2025
click to zoom
3D Models
AD74115BCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-48-13_2025
click to zoom

AD74115BCPZ-RL7 Details

  • Manufacturer Part Number:

    AD74115BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LFCSP:LEADFRM CHIP SCALE

  • Package Description:

    LFCSP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    LFCSP:LEADFRM CHIP SCALE

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2023-01-31

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Interface IC Type:

    DIGITAL I/O MODULE

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    28.8 V

  • Supply Voltage-Min:

    6 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

AD74115BCPZ-RL7 Frequently Asked Questions (FAQs)

  • It is recommended to follow a star-grounding scheme, keep the device away from high-current carrying traces, and use a solid ground plane to minimize noise. Additionally, place the device close to the analog signal sources and use short, direct traces to connect to the analog inputs.
  • Consult the AD74115BCPZ-RL7 evaluation board documentation and software tools, such as the ADI's Sigma-Delta ADC Evaluation Tool, to guide the configuration process. Additionally, refer to application notes and technical articles on Analog Devices' website for specific use cases and examples.
  • Choose components with low tolerance values, high stability, and low noise characteristics. Ensure that the capacitors have a suitable voltage rating and are placed close to the device. Refer to the datasheet and application notes for specific component recommendations and guidelines.
  • Implement a calibration procedure using the device's internal calibration capabilities or external calibration methods. Use temperature sensors and compensation techniques, such as curvature correction, to minimize temperature-related errors. Consult the datasheet and application notes for specific calibration and compensation guidelines.
  • Common pitfalls include inadequate power supply decoupling, poor layout and grounding, and incorrect configuration. To troubleshoot, use tools like oscilloscopes and logic analyzers to debug the digital interface, and consult the datasheet, application notes, and Analog Devices' support resources for guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD74115BCPZ-RL7 Overview

Use the download button to access the AD74115BCPZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD741, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
