AD743JR-16-REEL - Analog Devices

Description: IC OPAMP JFET 1 CIRCUIT 16SOIC

Download AD743JR-16-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

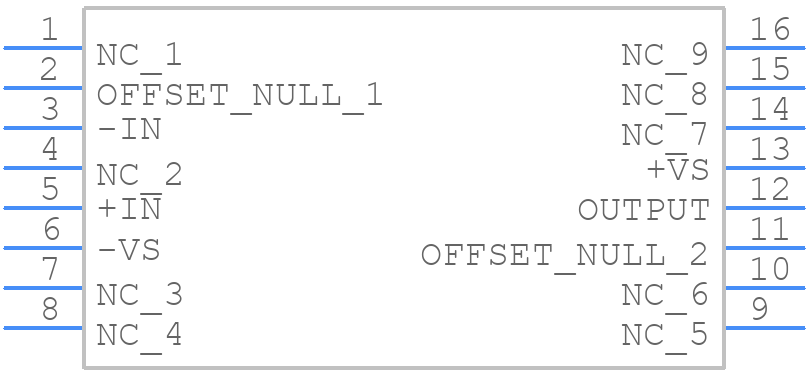

Symbol
AD743JR-16-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD743JR-16-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-16 (SOIC) Wide
click to zoom
3D Models
AD743JR-16-REEL - Analog Devices - 3D model - Small Outline Packages - R-16 (SOIC) Wide
click to zoom

AD743JR-16-REEL Details

  • Manufacturer Part Number:

    AD743JR-16-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0006 µA

  • Bias Current-Max (IIB) @25C:

    0.0004 µA

  • Common-mode Reject Ratio-Min:

    78 dB

  • Common-mode Reject Ratio-Nom:

    95 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.0064 µA

  • Input Offset Voltage-Max:

    1500 µV

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e0

  • Length:

    10.3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    240

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Slew Rate-Nom:

    2.8 V/us

  • Supply Current-Max:

    10 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    4500

  • Voltage Gain-Min:

    800000

  • Wideband:

    NO

  • Width:

    7.5 mm

AD743JR-16-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD743JR-16-REEL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the input and output stages. A 4-layer PCB with a dedicated analog ground layer is recommended. Additionally, the input and output pins should be routed away from each other to minimize capacitive coupling.
  • The AD743JR-16-REEL is specified to operate from -40°C to 125°C. To ensure operation within this range, the device should be mounted on a PCB with a suitable thermal design, and the ambient temperature should be monitored and controlled. Additionally, the device's power dissipation should be calculated and kept within the specified limits to prevent overheating.
  • The recommended input impedance for the AD743JR-16-REEL is 1 kΩ or higher. This is to ensure that the input signal is not attenuated and to minimize the effects of input bias current. A higher input impedance can also help to reduce noise and improve the overall signal-to-noise ratio.
  • Yes, the AD743JR-16-REEL can be used in a single-supply application, but the input common-mode voltage range is limited to VCC - 1.5V to VCC + 0.5V. Additionally, the output voltage swing is reduced in single-supply operation, and the device may not be able to swing rail-to-rail. A voltage divider or level-shifter may be required to interface with the output stage.
  • The AD743JR-16-REEL has built-in ESD protection, but additional protection measures can be taken to prevent damage from electrostatic discharge. These include using ESD-safe handling and storage procedures, implementing ESD protection circuits on the PCB, and using ESD-protected sockets or connectors.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD743JR-16-REEL Overview

Use the download button to access the AD743JR-16-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD743, or try a keyword search, such as Operational Amplifiers
