AD743JRZ-16 - Analog Devices

Description: AD743JRZ-16, Operational Amplifier 4.5MHz, 16-Pin SOIC W

Download AD743JRZ-16 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

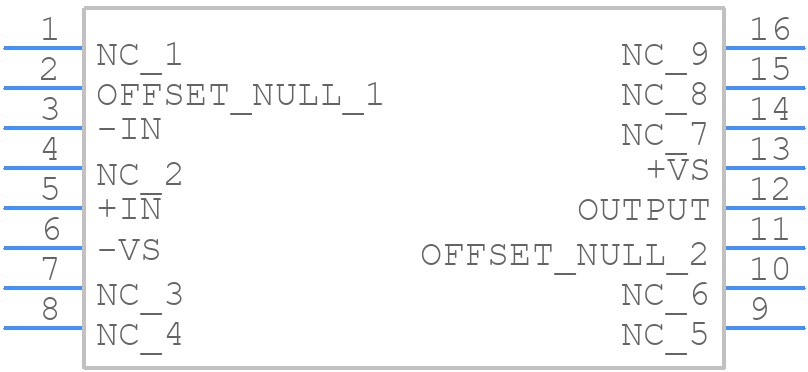

AD743JRZ-16 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD743JRZ-16 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-16 (SOIC) Wide
click to zoom
3D Models
AD743JRZ-16 - Analog Devices - 3D model - Small Outline Packages - R-16 (SOIC) Wide
click to zoom

AD743JRZ-16 Details

  • Manufacturer Part Number:

    AD743JRZ-16

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0006 µA

  • Bias Current-Max (IIB) @25C:

    0.0004 µA

  • Common-mode Reject Ratio-Min:

    78 dB

  • Common-mode Reject Ratio-Nom:

    95 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.0064 µA

  • Input Offset Voltage-Max:

    1500 µV

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Slew Rate-Nom:

    2.8 V/us

  • Supply Current-Max:

    10 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    4500

  • Voltage Gain-Min:

    800000

  • Wideband:

    NO

  • Width:

    7.5 mm

AD743JRZ-16 Frequently Asked Questions (FAQs)

  • The AD743JRZ-16 is a high-speed amplifier, and as such, it requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to keep the input and output traces as short as possible, and to use a solid ground plane to reduce noise. Additionally, it is recommended to place the amplifier close to the signal source and to use a low-impedance output to reduce ringing.
  • The gain resistor values for the AD743JRZ-16 depend on the desired gain and bandwidth of the amplifier. A higher gain resistor value will result in a higher gain, but may also reduce the bandwidth. It is recommended to use the gain resistor calculator tool provided by Analog Devices to determine the optimal gain resistor values for your specific application.
  • The maximum power dissipation of the AD743JRZ-16 is 1.4W. To ensure that the device does not overheat, it is recommended to provide adequate heat sinking, such as a thermal pad or heat sink, and to ensure good airflow around the device. Additionally, it is recommended to operate the device within the recommended operating temperature range of -40°C to 125°C.
  • Common issues with the AD743JRZ-16, such as oscillation or instability, can often be attributed to poor layout, inadequate decoupling, or incorrect gain resistor values. To troubleshoot these issues, it is recommended to check the layout and placement of the device, ensure that the power supply is well-regulated and decoupled, and verify that the gain resistor values are correct. Additionally, it may be helpful to use simulation tools or Spice models to simulate the circuit and identify potential issues.
  • The AD743JRZ-16 has built-in ESD protection and latch-up protection features to prevent damage from electrostatic discharge and latch-up. The device has a human body model (HBM) ESD rating of 2kV and a charged device model (CDM) ESD rating of 1kV. Additionally, the device has built-in latch-up protection to prevent latch-up during power-on or power-off transitions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD743JRZ-16 Overview

Use the download button to access the AD743JRZ-16 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD743, or try a keyword search, such as Operational Amplifiers
