AD74412RBCPZ-RL7 - Analog Devices

Description: Quad-Channel, Software Configurable Input/Output

Download AD74412RBCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD74412RBCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

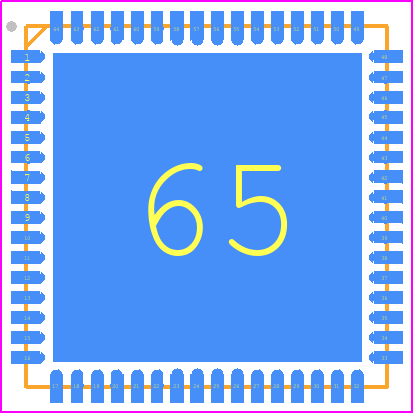

AD74412RBCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE _2023
click to zoom
3D Models
AD74412RBCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE _2023
click to zoom

AD74412RBCPZ-RL7 Details

  • Manufacturer Part Number:

    AD74412RBCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-64

  • Pin Count:

    64

  • Manufacturer Package Code:

    CP-64-15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-09-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N64

  • JESD-609 Code:

    e3

  • Length:

    9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    26.4 V

  • Supply Voltage-Min (Vsup):

    14 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9 mm

AD74412RBCPZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD74412RBCPZ-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling by keeping sensitive analog signals away from digital signals. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • The AD74412RBCPZ-RL7 has an internal calibration mechanism. To ensure proper calibration, follow the calibration procedure outlined in the datasheet, and make sure the device is operated within the recommended temperature range. Additionally, use a high-quality voltage reference and ensure the device is properly powered.
  • The recommended power-up sequence for the AD74412RBCPZ-RL7 is to first apply the analog supply voltage (AVDD), followed by the digital supply voltage (DVDD), and then the clock signal. This ensures proper device initialization and prevents latch-up.
  • To minimize EMI and RFI interference, use proper shielding, grounding, and filtering techniques. Use a metal shield around the device, and ensure good grounding of the device and surrounding components. Additionally, use EMI filters on the input and output signals.
  • The maximum allowed noise level on the power supply lines for the AD74412RBCPZ-RL7 is 10mV peak-to-peak. Exceeding this limit may affect device performance and accuracy. Use a high-quality power supply with adequate filtering to minimize noise.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD74412RBCPZ-RL7 Overview

Use the download button to access the AD74412RBCPZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD744, or try a keyword search, such as Other Signal Circuits
